スペック
Form factor | ATX | |
---|---|---|
Processor |

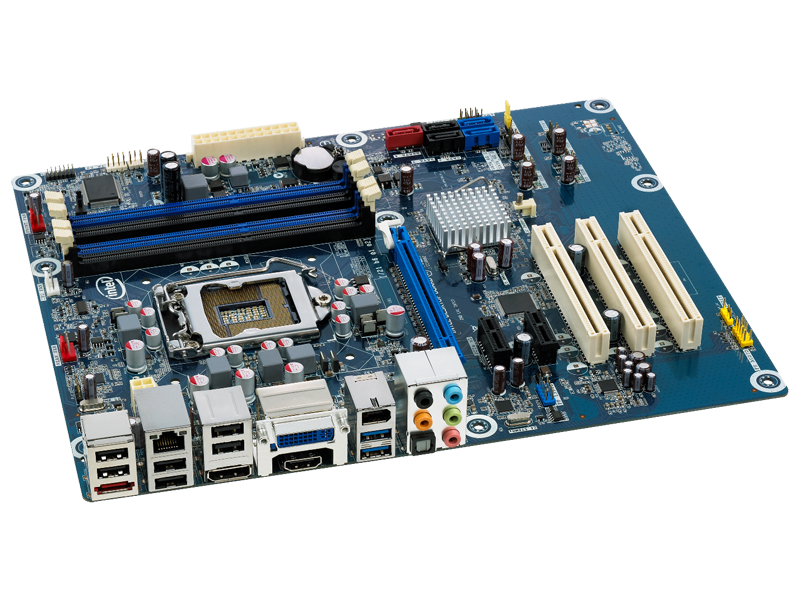

At product launch, this Intel® Desktop Board DZ68DB supports: Intel® Core™ i7 processor series in an LGA1155 socket Intel® Core™ i5 processor series in an LGA1155 socket Intel® Core™ i3 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
|
Memory |
Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 /1066 MHz DIMMs Support for up to 32 GBς1 of system memory |
|
Chipset |
Intel® Z68 Express Chipset Intel® Rapid Storage Technology (Intel® RST) for RAID 0, 1, 5, and 10 |
|
Graphics | DVI-I, DisplayPort*, and HDMI* | |
Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec Five analog audio ports and one optical S/PDIF out port Internal S/PDIF header and front panel audio header |
|
LAN support | Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller | |
Peripheral interfaces |
Two Serial ATA 6.0 Gb/s, three SATA 3.0 Gb/s, and one External SATA (eSATA) 3.0 Gb/s ports Two USB 3.0 ports Ten USB 2.0 ports, six back panel ports, and eight additional ports via four internal headers |
|
Expansion capabilities |
One PCI Express* 2.0 x 16 discrete graphics card connector Two PCI Express 2.0 x 1 connectors Three Conventional PCI bus connectors |
