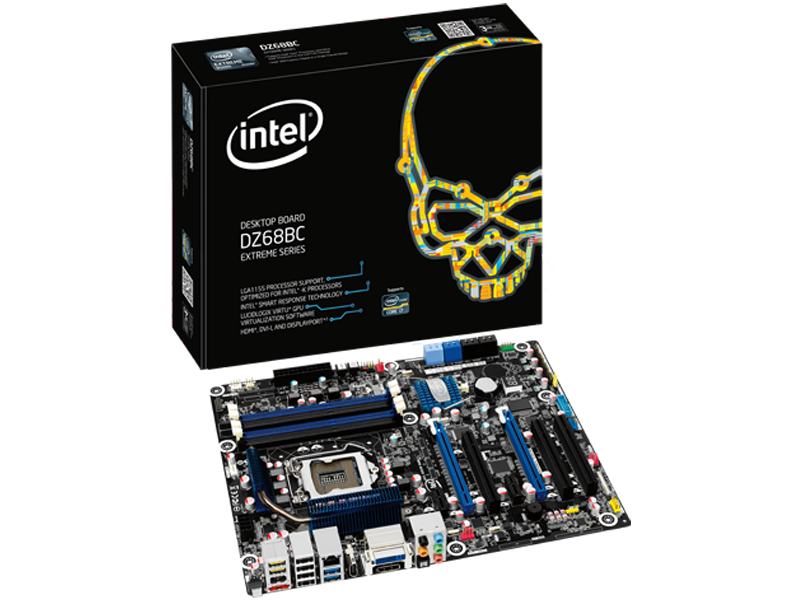

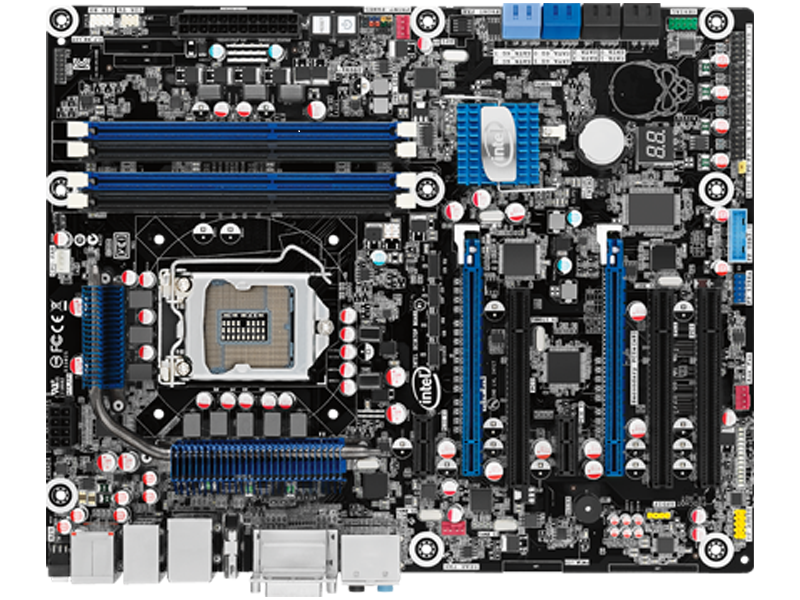

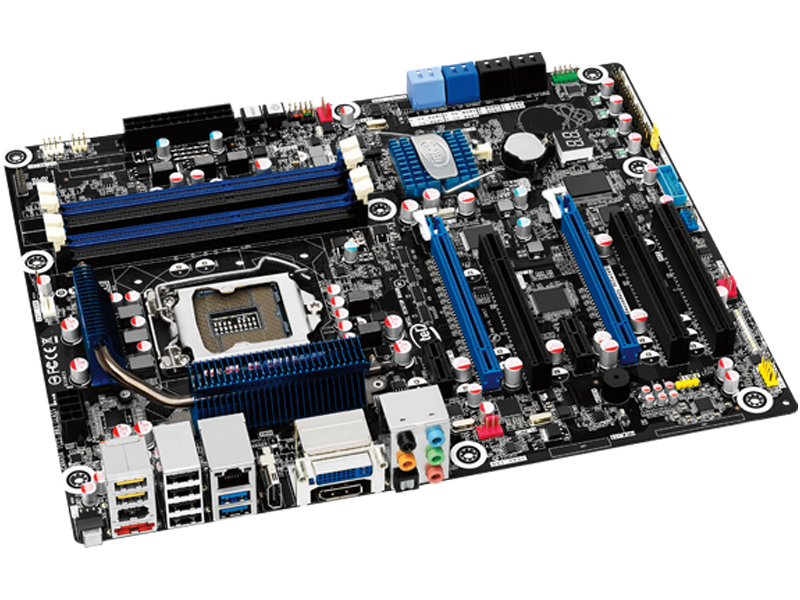

インテル® Z68 Express チップセット搭載ATXマザーボード

DZ68BC

JAN/UPC:0735858221771
メーカー型番:BOXDZ68BC
TEKWIND型番:INT-BOXDZ68BC


製品画像


スペック

Form factor ATX
Processor At product launch, this Intel® Desktop Board DZ68BC supports: Intel® Core™ i7 -K processors series and other processors in an LGA1155 socket
View all compatible Intel® processor numbers
Memory Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1600+ /1333 /1066 MHz DIMMs
Support for up to 32 GB of system memory
Tested system memory
Chipset Intel® Z68 Express Chipset
Graphics Intel® HD Graphics
Two PCI Express* 2.0 x16 connectors (one x8 electrical) Supports ATI
CrossFireX* and NVIDIA SLI*
Audio Intel® High Definition Audio (Intel® HD Audio) subsystem in the following
configuration: >   10-channel (7.1 + 2 independent multi-streaming) audio subsystem with six analog audio outputs w/optical S/PDIF out port
LAN support Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit
Ethernet Controller

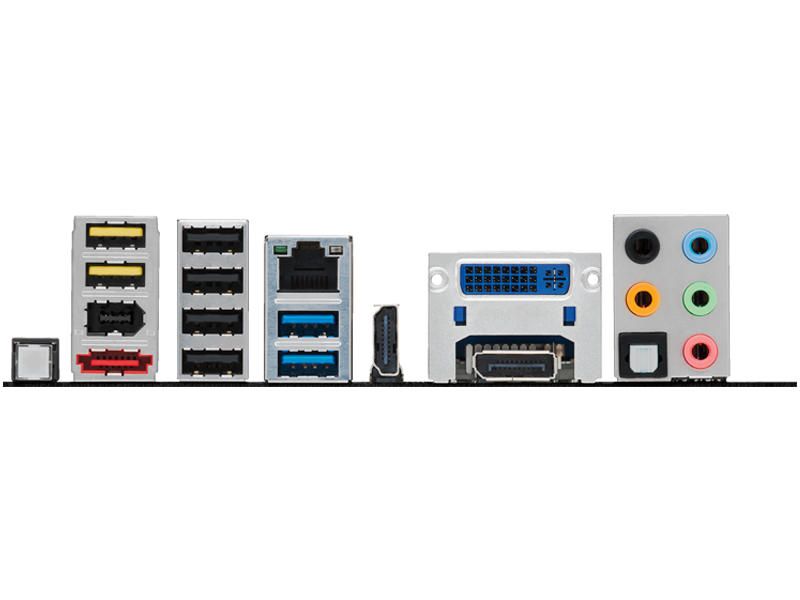

Peripheral interfaces Four SuperSpeed USB 3.0 ports (2 external/2 header)
Fourteen USB 2.0 ports (6 external (2 Hi-Current/Fast Charging) / 8 internal)
Four Serial ATA 6.0 Gb/s ports , one eSATA 6.0 Gb/s
Four Serial ATA 3.0 Gb/s ports
Two IEEE 1394a ports/headers (1 external/1 header)
Consumer Infrared receiver and emitter
Expansion capabilities Two PCI Express 2.0 x16 connectors (one x8 electrical)
Two PCI Express 2.0 x 1 connectors
Three PCI Conventional bus connectors
