DX79TO

・JAN/UPC：0735858225182
・メーカー型番：BOXDX79TO
・TEKWIND型番：INT-BOXDX79TO

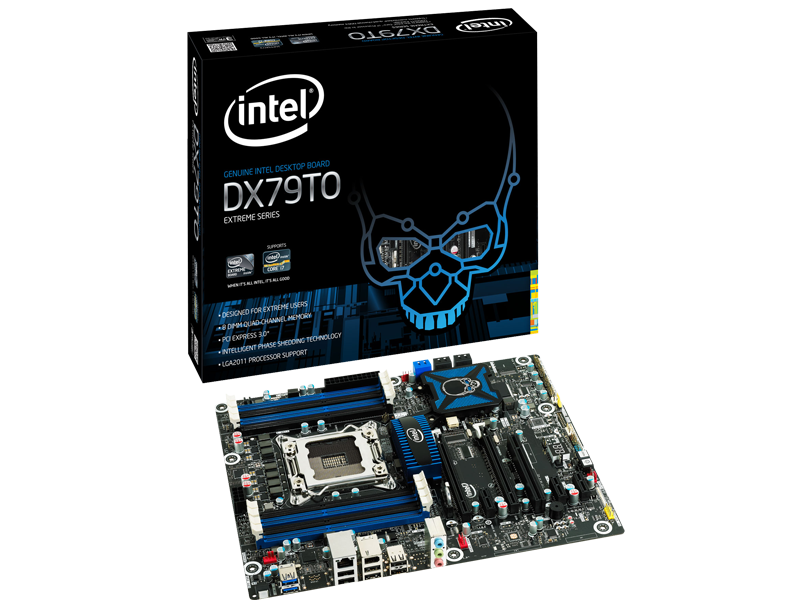

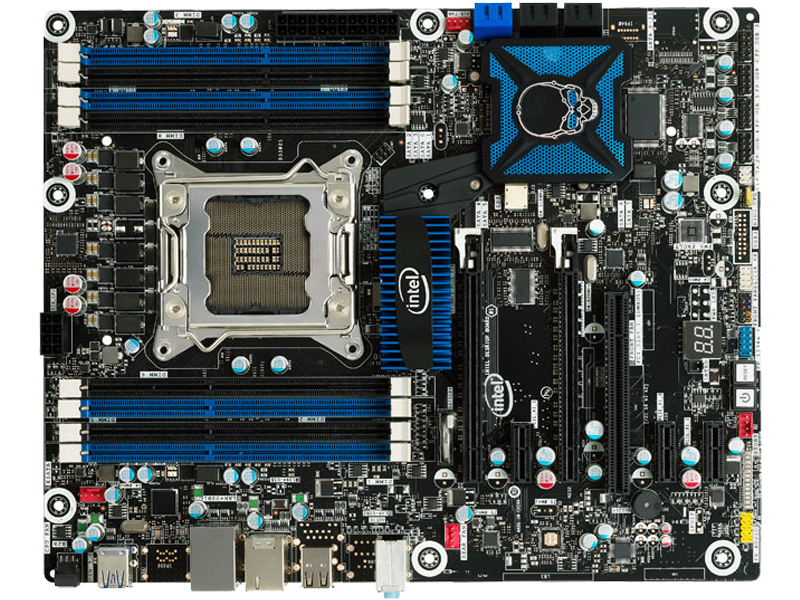

製品画像

Form factor	ATX
Processor	At product launch, this Intel® Desktop Board DX79TO supports: Intel® Core™ i7 Extreme Edition processor series in the LGA2011 socket View all compatible Intel® processor numbers
Memory	Eight 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for up to DDR3 1600+ O.C. Support for up to 64 GB of system memory
Chipset	Intel® X79 Express Chipset
Audio	Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 6-channel (5.1+2 independent multi-streaming) audio subsystem with three analog audio outputs
LAN support	Intel® Gigabit (10/100/1000 Mb/s) LAN subsystem using Intel® Gigabit Ethernet Controller
Peripheral interfaces	Two SuperSpeed USB 3.0 ports (2 external ports) 14 USB 2.0 ports (6 external ports, 8 via internal headers) Six Serial ATA ports: 2 internal connectors (6.0 Gb/s), 4 internal connectors (3.0 Gb/s) Two IEEE 1394a ports (1 external port, 1 via internal header) Consumer Infrared receiver and emitter
Expansion capabilities	Two PCI Express* 3.0 x16 bus add-in card connectors Three PCI Express x1 connectors One PCI Conventional* bus connector
Other	TPM module built in
Warranty	3-year warranty (BOX/BLK) Standard Warranty Replacement (SWR)
