カテゴリー:
PCパーツ > マザーボード > LGA1155

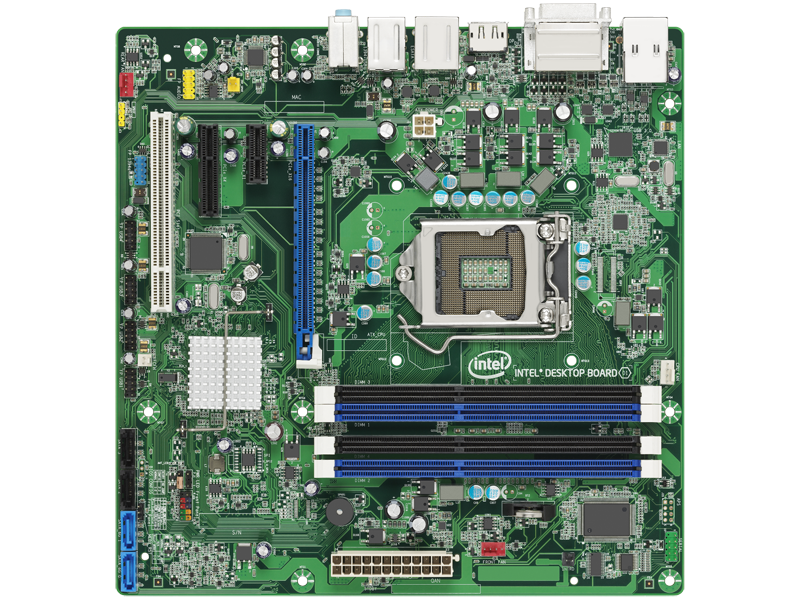

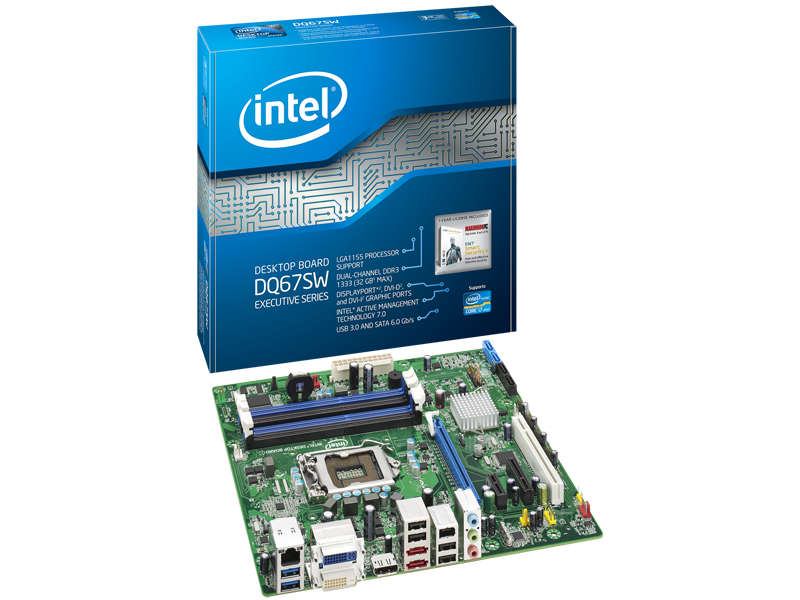

インテル® Q67 Express チップセット搭載Micro-ATXマザーボード
・JAN/UPC:0735858221177
・メーカー型番:BOXDQ67SWB3
・TEKWIND型番:INT-BOXDQ67SWB3
スペック
Form factor | Micro-ATX |
---|---|
Processor |
At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket Intel® Core™ i5 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
Memory |
Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 /1066 MHz DIMMs Support for up to 32 GB of system memory Tested system memory |
Chipset | Intel® Q67 Express Chipset |

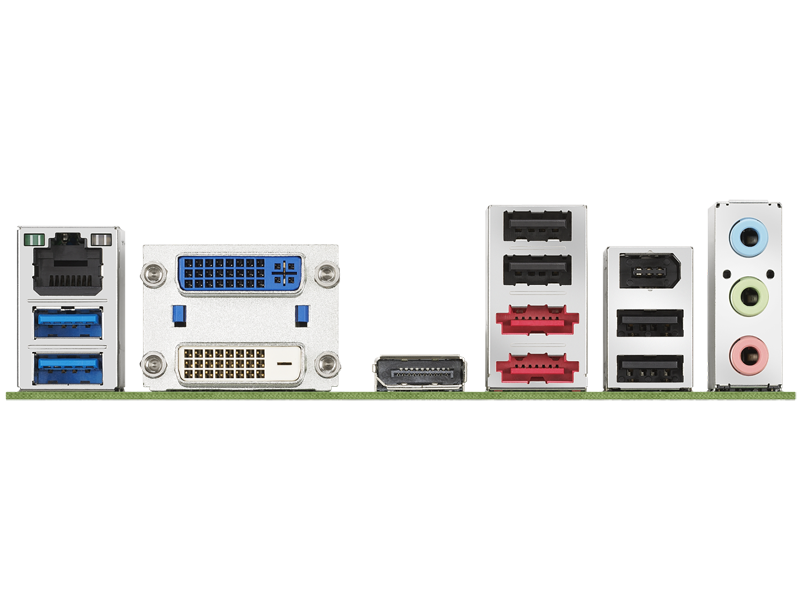

Graphics | DisplayPort*, DVI-D, DVI-I graphics connectors for processors with Intel® HD Graphics |
Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 8-channel (5.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888* audio codec |
LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579LM Gigabit Ethernet Controller |
Peripheral interfaces |
Two USB 3.0 ports Up to twelve USB 2.0 ports Two Serial ATA 6.0 Gb/s ports Two Serial ATA 3.0 Gb/s ports Two eSATA 3.0 Gb/s rear ports Up to two IEEE 1394a ports |
Expansion capabilities |
One PCI Express* 2.0 x 16 bus add-in card connector One PCI Express x 4 connector One PCI Express x 1 connector One PCI Conventional bus connector |
