カテゴリー: PCパーツ > マザーボード > LGA1155

販売終了

インテル® P67 Express チップセット搭載Micro ATXマザーボード

DP67DEB3

JAN/UPC:0735858221030
メーカー型番:BOXDP67DEB3
TEKWIND型番:INT-BOXDP67DEB3

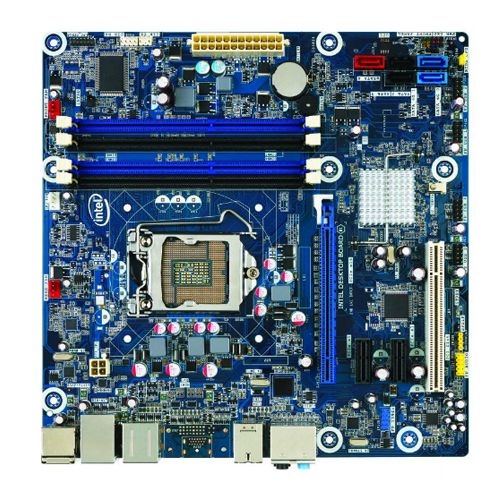

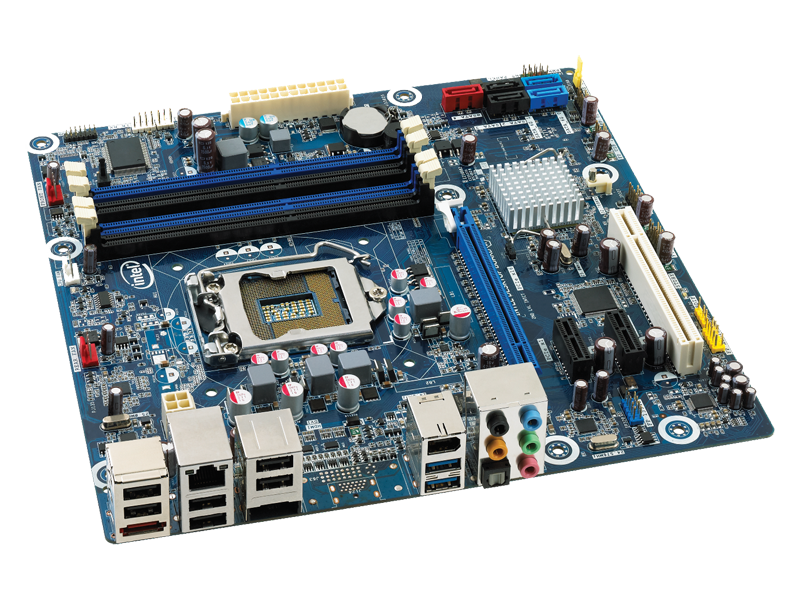

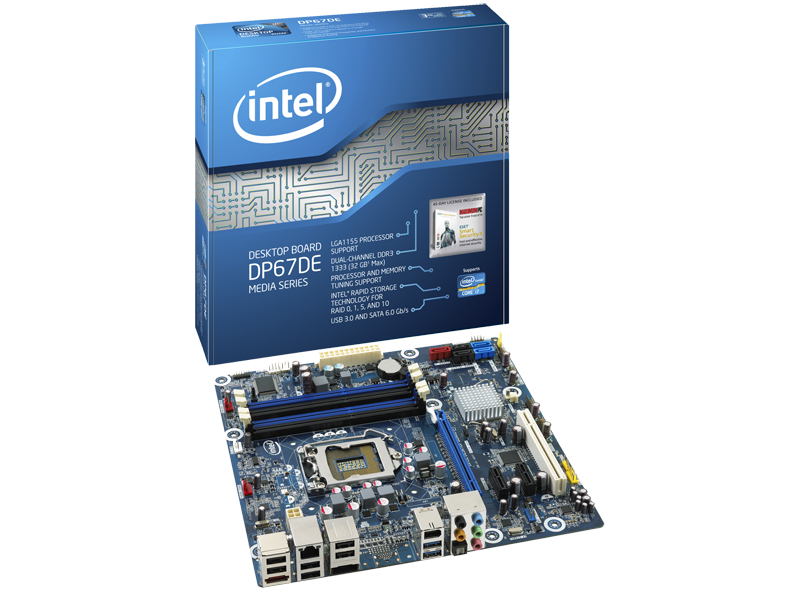

製品画像


スペック

Form factor Micro-ATX
Processor At product launch, this desktop board supports:
Intel® Core™ i7-2000 processor series in an LGA1155 socket
Intel® Core™ i5-2000 processor series in an LGA1155 socket
Intel® Core™ i3-2000 processor series in an LGA1155 socket
View all compatible Intel® processor numbers
Memory Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1333 /1066 MHz DIMMs
Support for up to 32 GB of system memory
Chipset Intel® P67 Express Chipset
Intel® Rapid Storage Technology for RAID 0, 1, 5, and 10
Graphics Discrete graphics support for PCI Express 2.0 x16 add-in graphics card
Audio 10-channel (7.1+2) Intel® High Definition Audio (Intel® HD Audio) using a Realtek ALC892* audio codec including:
Front panel audio header with support for Intel HD Audio and AC '97 Audio

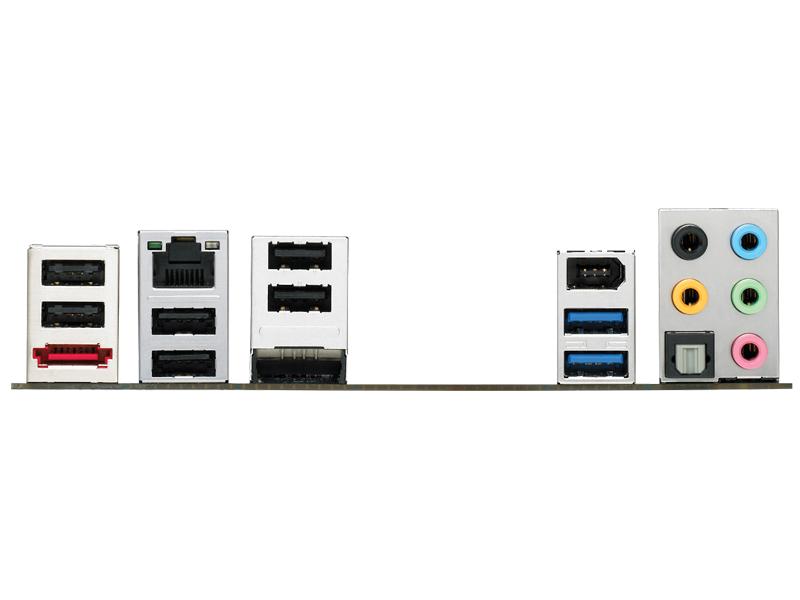

Five analog audio jacks on the back panel
Onboard S/PDIF out header and back panel optical S/PDIF out connector

LAN support Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral interfaces Two Serial ATA 6.0 Gb/s ports
Three Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension
One eSATA 3.0 Gb/s port
Two USB 3.0 ports
Fourteen USB 2.0 ports, six back panel ports and eight additional ports via four internal headers
Two IEEE 1394a ports (one external, one internal header)
Expansion capabilities One PCI Express* 2.0 x 16 bus add-in card connector
Two PCI Express 2.0 x 1 connectors
One PCI Conventional bus connector
