スペック
Form factor | ATX |
---|---|
Processor |
At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket Intel® Core™ i5 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
Memory |
Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1600/1333/1066 MHz DIMMs Support for up to 32 GB of system memory Tested system memory |
Chipset |
Intel® P67 Express Chipset Intel® Rapid Storage Technology for RAID 0, 1, 5 and 10 |
Audio | Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs w/optical S/PDIF out port |
LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller |

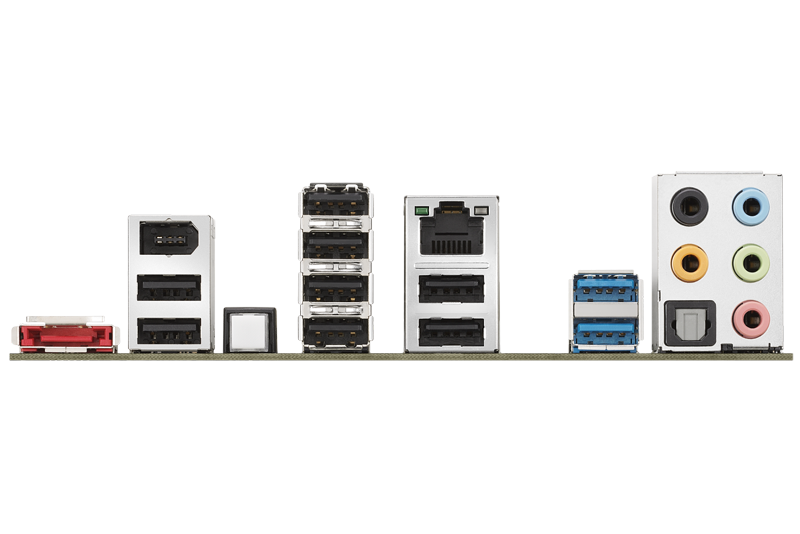

Peripheral interfaces |
Two SuperSpeed USB 3.0 ports Fourteen USB 2.0 ports Two Serial ATA 6.0 Gb/s ports Four Serial ATA 3.0 Gb/s ports, one eSATA ext. port One IEEE 1394a header |
Expansion capabilities |
One PCI Express* 2.0 x 16 bus add-in card connector or switchable to 2x8 PCIe 2.0 connectors Three PCI Express 2.0 x 1 connectors Two PCI Conventional bus connectors |
