スペック
Form factor | ATX |
---|---|
Processor |
At product launch, this desktop board supports: Intel® Core™ i7-2000 processor series in an LGA1155 socket Intel® Core™ i5-2000 processor series in an LGA1155 socket Intel® Core™ i3-2000 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
Memory |
Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 / 1066 MHz DIMMs Support for up to 32 GB of system memory |
Chipset |
Intel® P67 Express Chipset Intel® Rapid Storage Technology for RAID 0, 1, 5, and 10 |
Graphics | Discrete graphics support for PCI Express* 2.0 x16 add-in graphics card |
Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888* audio codec Five analog audio ports and one optical S/PDIF out port Internal S/PDIF header and front panel audio header |
LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 8259V Gigabit Ethernet Controller |
Peripheral interfaces |

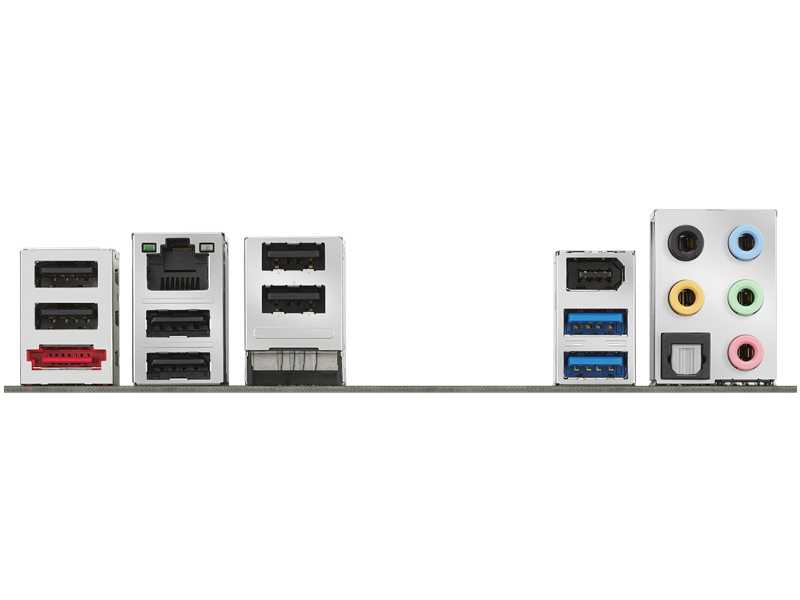

Two Serial ATA 6.0 Gb/s ports Three Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension One eSATA 3.0 Gb/s port Two USB 3.0 ports Fourteen USB 2.0 ports, six back panel ports, and eight additional ports via four internal headers Two IEEE 1394a ports (one external and one internal header) |
Expansion capabilities |
One PCI Express 2.0 x 16 bus add-in card connector Three PCI Conventional bus connectors Two PCI Express 2.0 x 1 connectors |
