スペック
Form factor | Micro-ATX |
---|---|
Processor |
At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket Intel® Core™ i5 processor series in an LGA1155 socket Intel® Core™ i3 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
Memory |
Four 240-pin, DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 / 1066 MHz DIMMs Support up to 32 GB of system memory |
Chipset |
Intel® H67 Express Chipset Intel® Rapid Storage Technology (Intel® RST) for RAID 0, 1, 5, and 10 |
Graphics | DVI-I, HDMI*, and DisplayPort* connectors for processors with Intel® HD Graphics |
Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec Five analog audio ports and one optical S/PDIF out port Internal S/PDIF header and front panel audio header |
LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller |
Peripheral interfaces |

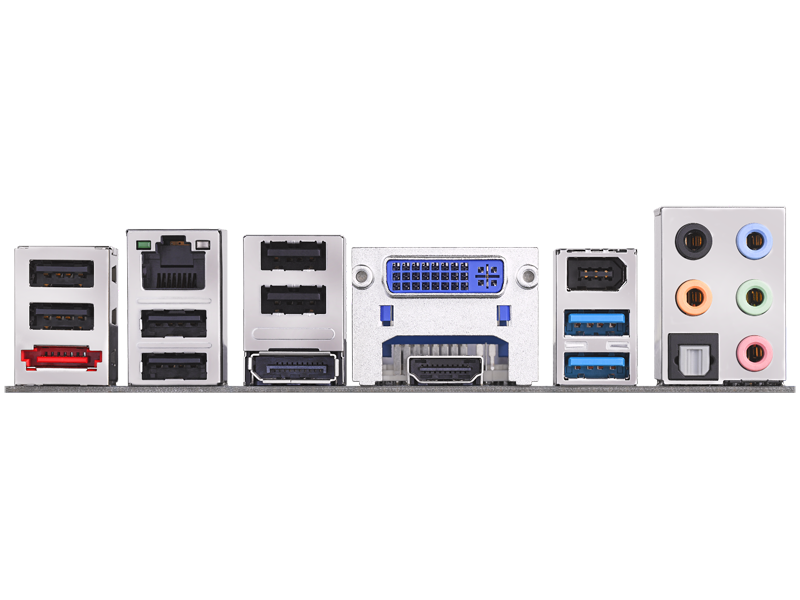

Two Serial ATA 6.0 Gb/s ports; three Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension; one eSATA 3.0 Gb/s port Two USB 3.0 ports; fourteen USB 2.0 ports, six back panel ports, and eight additional ports via four internal headers Two IEEE 1394a ports, one back panel port, and one via internal header |
Expansion capabilities |
One PCI Express* 2.0 x 16 discrete graphics card connector Two PCI Express 2.0 x 1 connectors One PCI Conventional bus connector |
