カテゴリー: PCパーツ > マザーボード > LGA1155

販売終了

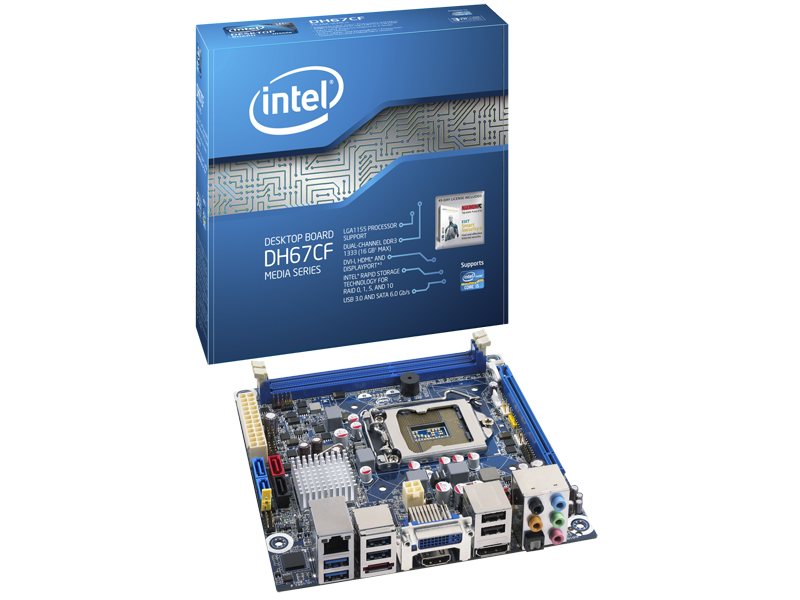

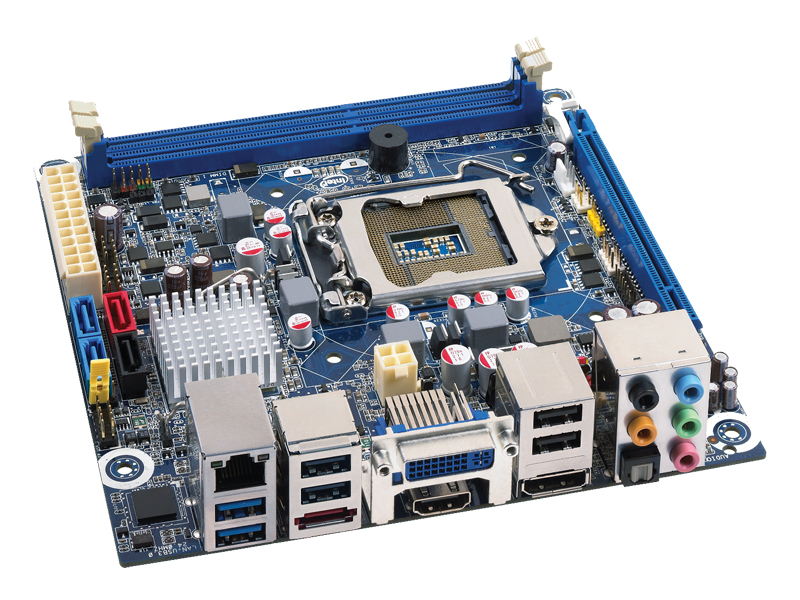

インテル® H67 Express チップセット搭載Mini-ITXマザーボード

DH67CFB3

JAN/UPC:0735858221115
メーカー型番:BOXDH67CFB3
TEKWIND型番:INT-BOXDH67CFB3


製品画像


スペック

Form factor Mini-ITX
Processor At product launch, this desktop board supports:
Intel® Core™ i5–2000 processor series (65W TDP) in an LGA1155 socket
Intel® Core™ i3–2000 processor series (65W TDP) in an LGA1155 socket
View all compatible Intel® processor numbers
Memory Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1333/1066 MHz DIMMs
Support for up to 16 GB of system memory
Chipset Intel® H67 Express Chipset
Intel® Rapid Storage Technology for RAID 0, 1, 5, and 10
Graphics Integrated graphics support for processors with Intel® Graphics Technology:

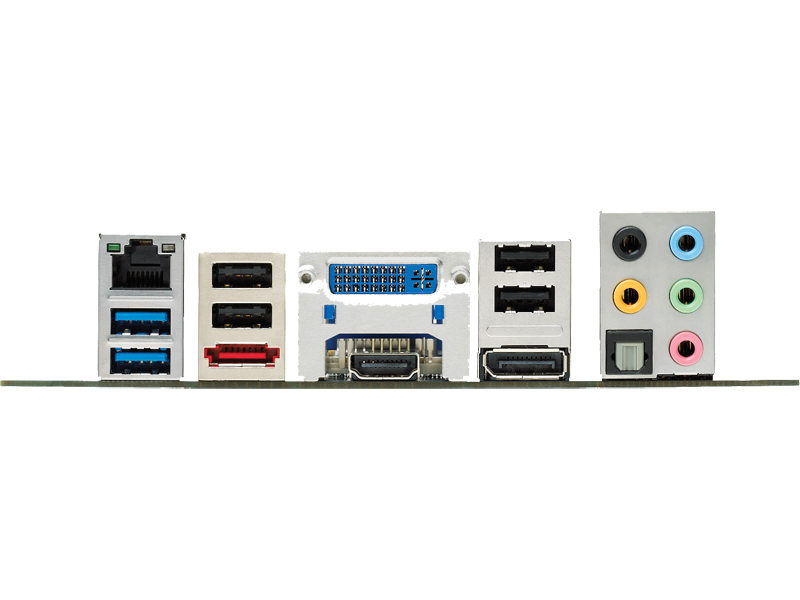

High Definition Multimedia Interface* (HDMI*)
DVI-I
DisplayPort*
Discrete graphics support for PCI Express* 2.0 x16 add-in graphics card
Audio Intel® High Definition Audio subsystem in the following configuration:
10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs w/optical S/PDIF out port
Five analog audio ports and one optical S/PDIF out port
Internal S/PDIF header and front panel audio header
LAN support Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral interfaces Two Serial ATA 6.0 Gb/s ports
Two Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension
One eSATA 3.0 Gb/s port
Two SuperSpeed USB 3.0 ports
Ten USB 2.0 ports, four back panel ports and six additional ports via three internal headers
Expansion capabilities One PCI Express* 2.0 x 16 discrete graphics card connector
