カテゴリー: PCパーツ > マザーボード > LGA1155

販売終了

インテル® H67 Express チップセット搭載Micro-ATXマザーボード

DH67BLB3

JAN/UPC:0735858221078
メーカー型番:BOXDH67BLB3
TEKWIND型番:INT-BOXDH67BLB3

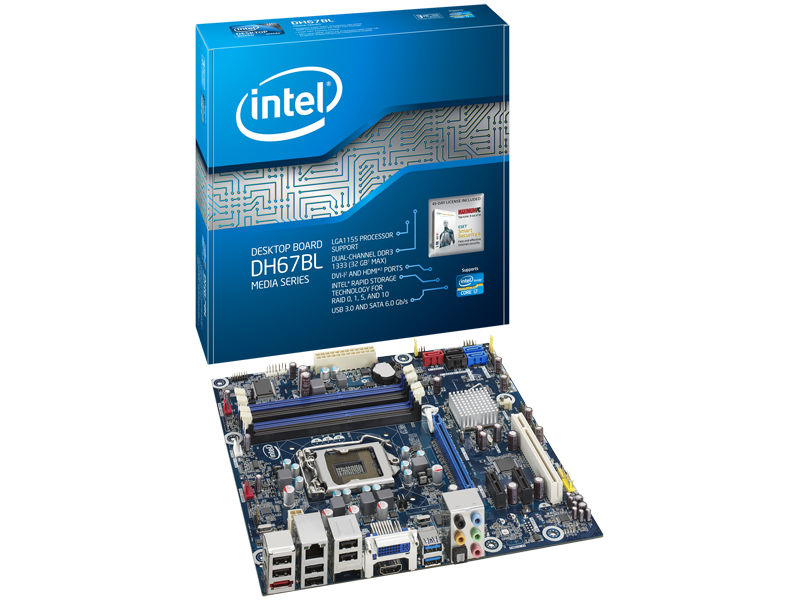

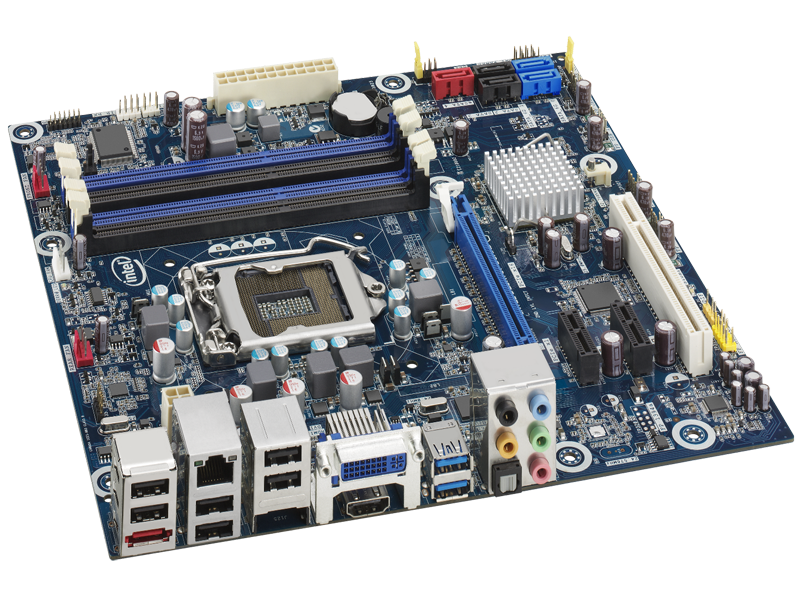

製品画像


スペック

Form factor Micro-ATX
Processor At product launch, this desktop board supports:
Intel® Core™ i7 processor series in an LGA1155 socket
Intel® Core™ i5 processor series in an LGA1155 socket
Intel® Core™ i3 processor series in an LGA1155 socket
View all compatible Intel® processor numbers
Memory Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1333/1066 MHz DIMMs
Support up to 32 GB of system memory
Tested system memory
Chipset Intel® H67 Express Chipset
Intel® Rapid Storage Technology (Intel® RST) for RAID 0, 1, 5, and 10
Graphics DVI-I and HDMI* connectors for processors with Intel® HD Graphics
Audio Intel® High Definition Audio subsystem in the following configuration:
10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec
Five analog audio ports and one optical S/PDIF out port
Internal S/PDIF header and front panel audio header
LAN support Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral interfaces Two Serial ATA 6.0 Gb/s ports
Three Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension
One eSATA 3.0 Gb/s port
Two USB 3.0 ports

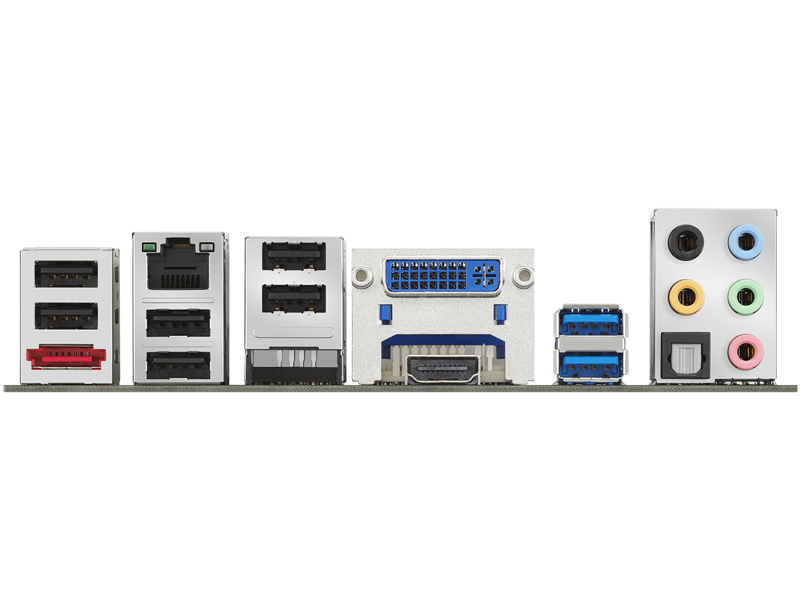

Fourteen USB 2.0 ports, six back panel ports and eight additional ports via four internal headers
Expansion capabilities One PCI Express* 2.0 x 16 discrete graphics card connector
Two PCI Express 2.0 x 1 connectors
One PCI Conventional bus connector
