カテゴリー：
PCパーツ > マザーボード > LGA1155
インテル® H61 Express チップセット搭載Micro-ATXマザーボード
・JAN/UPC：0735858220859
・メーカー型番：BOXDH61WWB3
・TEKWIND型番：INT-BOXDH61WWB3

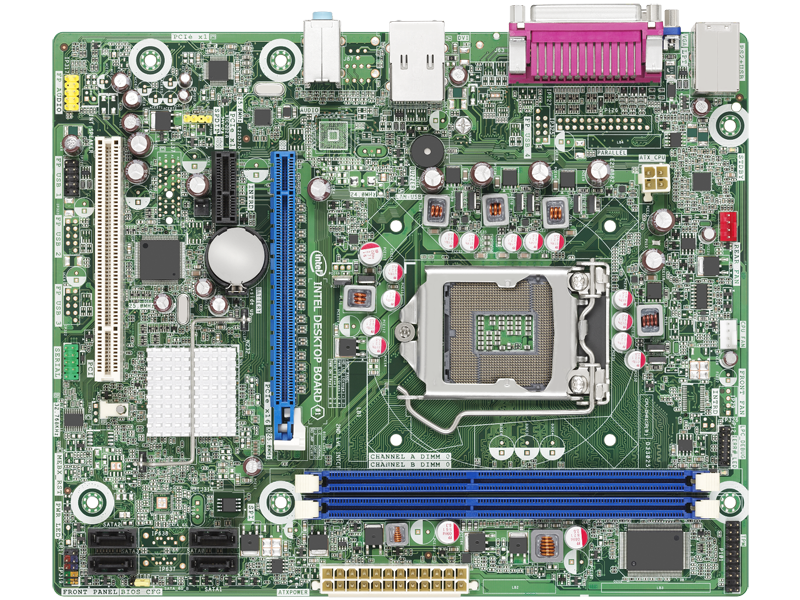

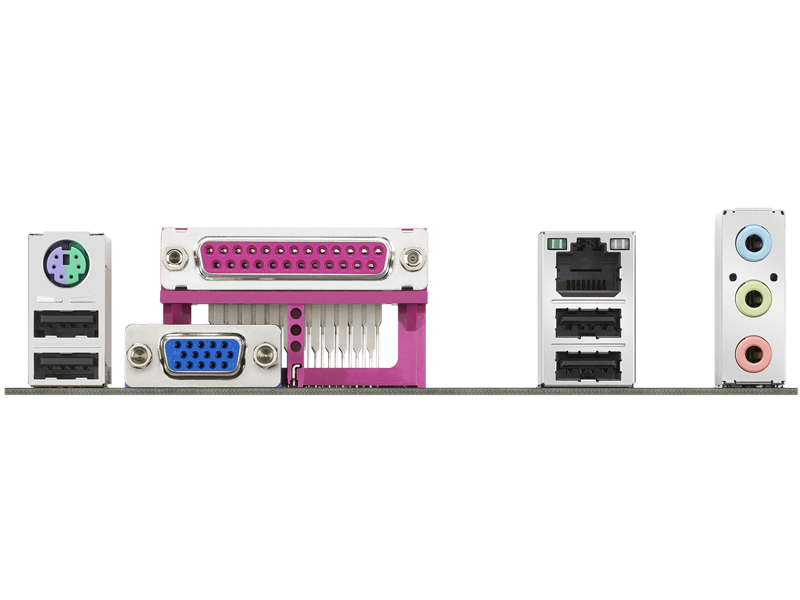

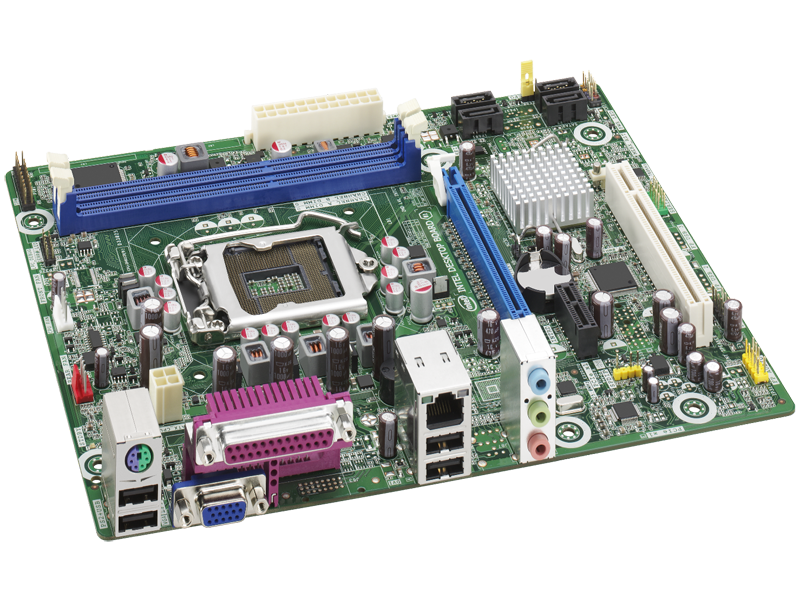

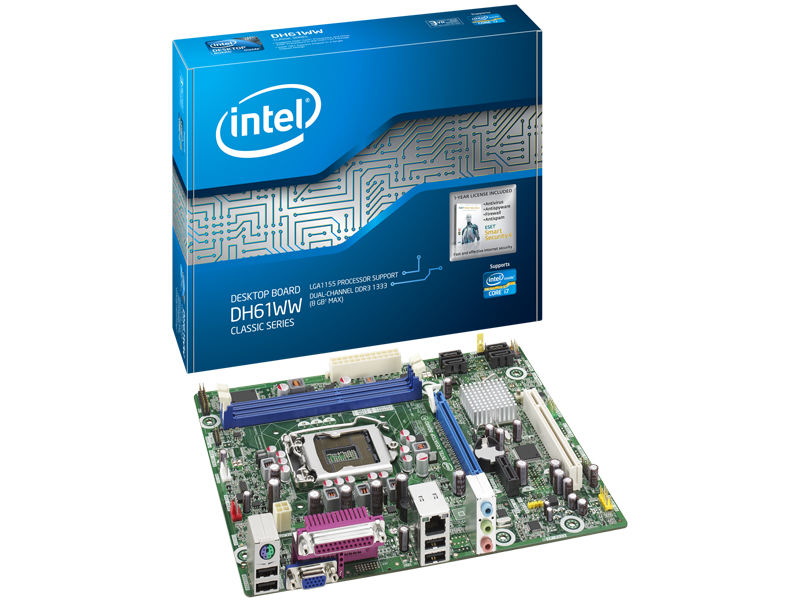

製品画像
スペック
| Form factor | Micro-ATX |
|---|---|
| Processor |
At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket Intel® Core™ i5 processor series in an LGA1155 socket Intel® Core™ i3 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
| Memory |
Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 / 1066 MHz DIMMs Support for up to 16 GB of system memory Tested system memory |
| Graphics | VGA connector for processors with Intel® HD Graphics |
| Chipset | Intel® H61 Express Chipset |
| Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 6-channel audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec |
| LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller |
| Peripheral interfaces |
Up to six USB 2.0 ports Four Serial ATA 3.0 Gb/s ports One parallel port One serial header |
| Expansion capabilities |
One PCI Express* 2.0 x 16 bus add-in card connector One PCI Express 2.0 x 1 connectors One PCI Conventional bus connector |
