カテゴリー:
PCパーツ > マザーボード > LGA1155

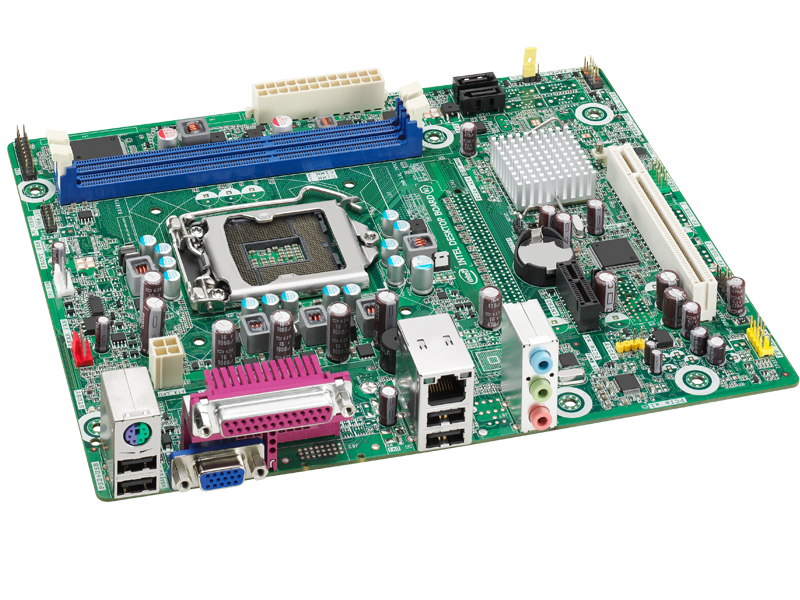

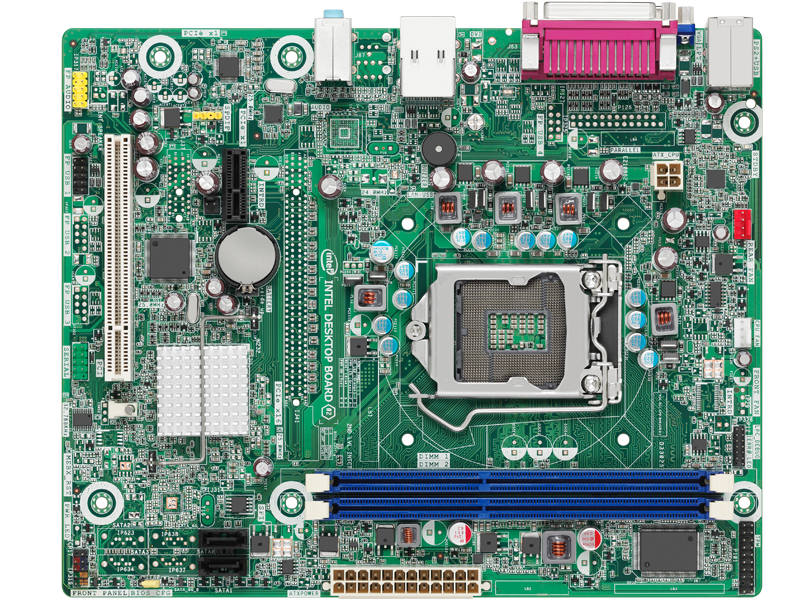

インテル® H61 Express チップセット搭載Micro-ATXマザーボード
・JAN/UPC:0735858223638
・メーカー型番:BOXDH61SA
・TEKWIND型番:INT-BOXDH61SA
スペック
Form factor | Micro-ATX |
---|---|
Processor |
At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket Intel® Core™ i5 processor series in an LGA1155 socket Intel® Core™ i3 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
Memory |
Two 240-pin, DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333/1066 MHz DIMMs Support for up to 16 GB of system memory |
Graphics | VGA connector for processors with Intel® HD Graphics |
Chipset | Intel® H61 Express Chipset |
Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 6-channel audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec |
LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller |

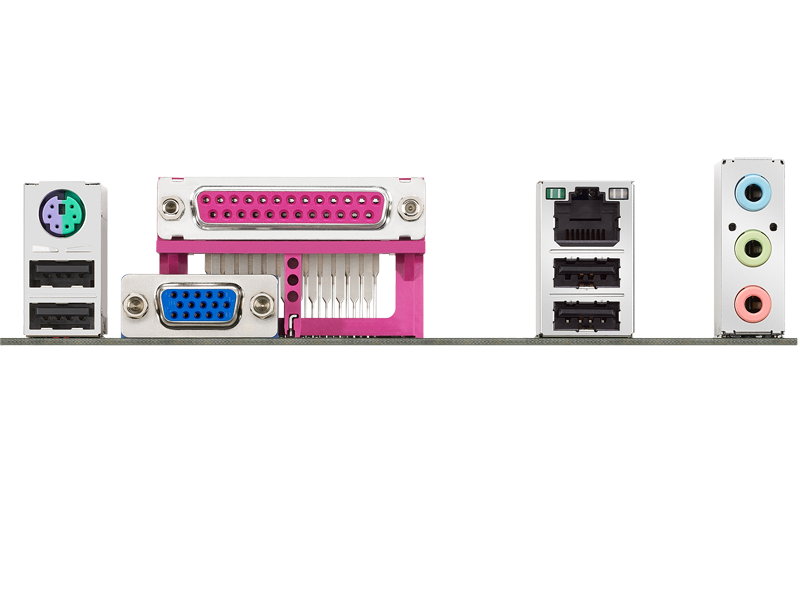

Peripheral interfaces |
Up to six USB 2.0 ports Two Serial ATA 3.0 Gb/s ports One Parallel port One Serial header |
Expansion capabilities |
One PCI Express* 2.0 x 1 connectors One PCI Conventional bus connector |
