カテゴリー:
PCパーツ > マザーボード > LGA1155

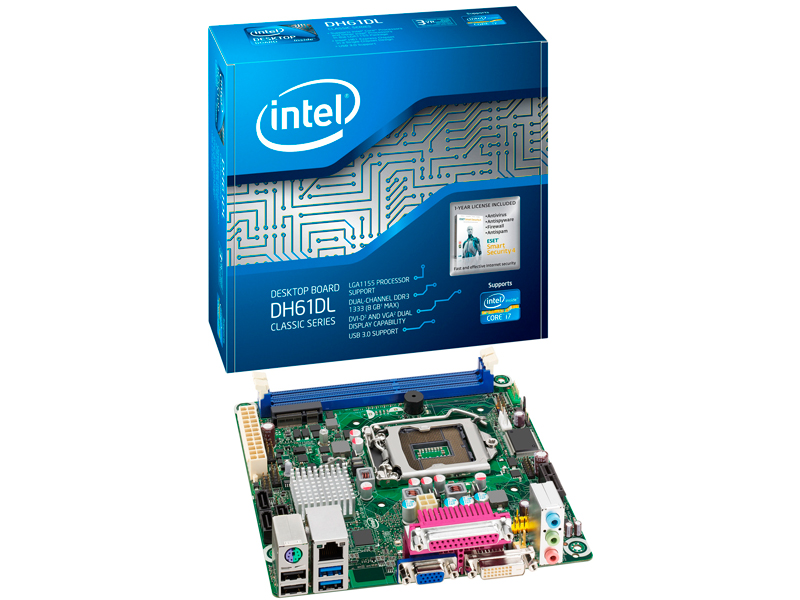

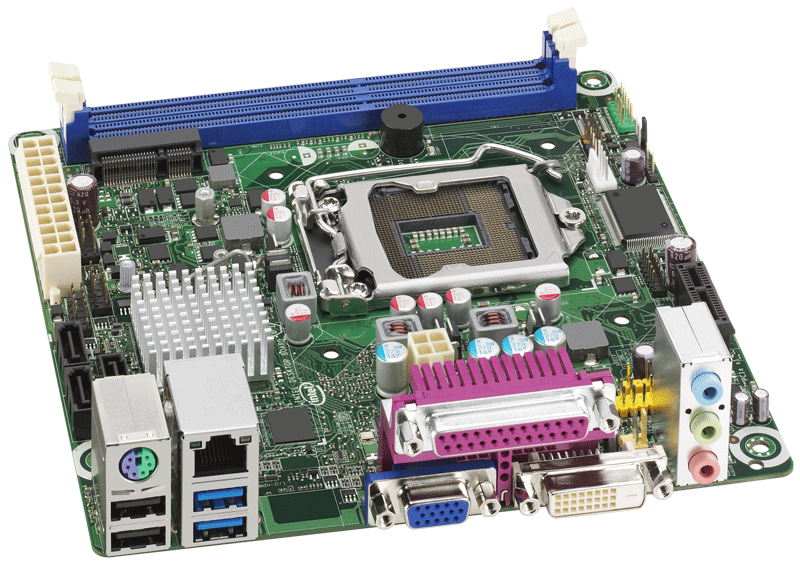

インテル® H61 Express チップセット搭載Mini-ITXマザーボード
・JAN/UPC:0735858220941
・メーカー型番:BOXDH61DLB3
・TEKWIND型番:INT-BOXDH61DLB3
スペック
Form factor | Mini-ITX |
---|---|
Processor |
At product launch, this desktop board supports: Intel® Core™ i5 processor series in an LGA1155 socket Intel® Core™ i3 processor series in an LGA1155 socket View all compatible Intel® processor numbers |
Memory |
Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 /1066 MHz DIMMs Support for up to 16 GB of system memory Tested system memory |
Chipset | Intel® H61 Express Chipset |
Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 6-channel (5.1) audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec |
Graphics | DVI-D and VGA connectors for processors with Intel® HD Graphics |
LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller |

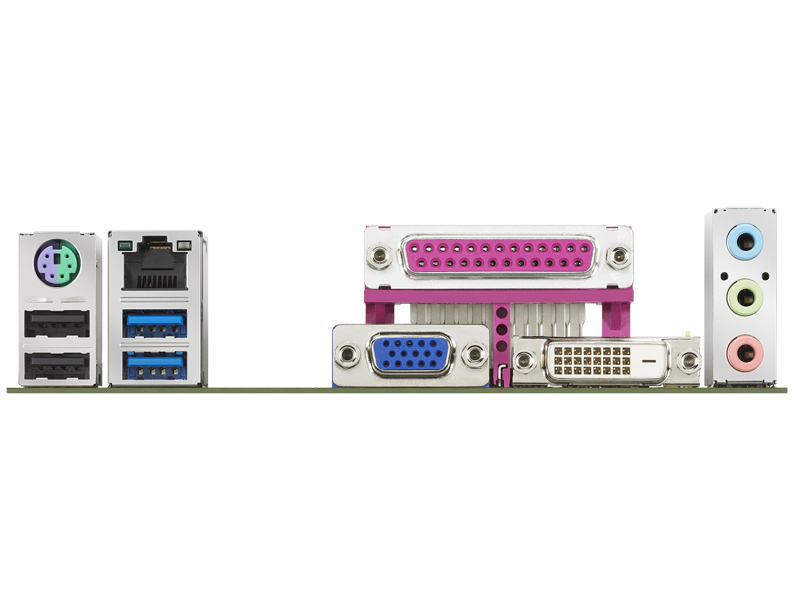

Peripheral interfaces |
Two USB 3.0 ports Up to eight USB 2.0 ports Three Serial ATA 3.0 Gb/s ports One serial header One parallel port One PS/2 Port |
Expansion capabilities |
One PCI Express* 2.0 x 1 connectors One PCI Express Mini-card slot |
