販売終了

インテル® H61 Express チップセット搭載Micro-ATXマザーボード

DH61CRB3

JAN/UPC:0735858220880
メーカー型番:BOXDH61CRB3
TEKWIND型番:INT-BOXDH61CRB3


製品についてお気軽にお問い合わせください

この製品を問い合わせる

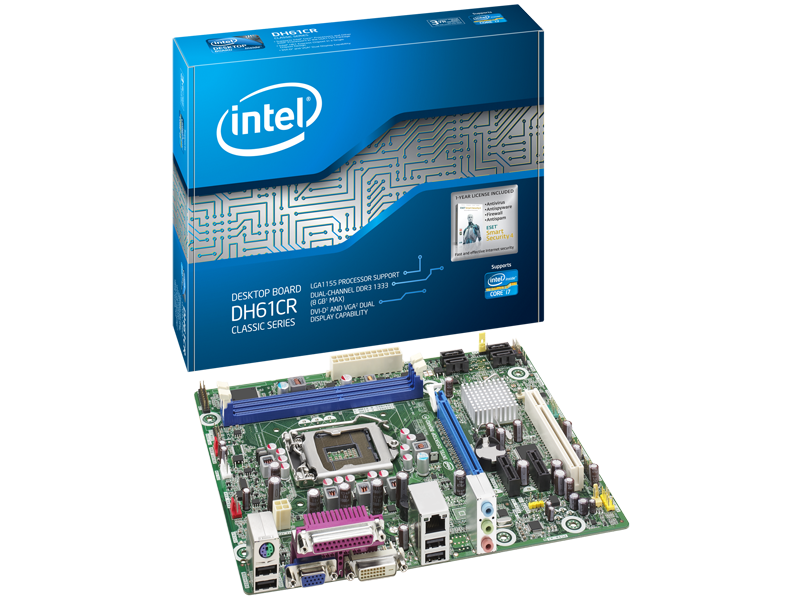

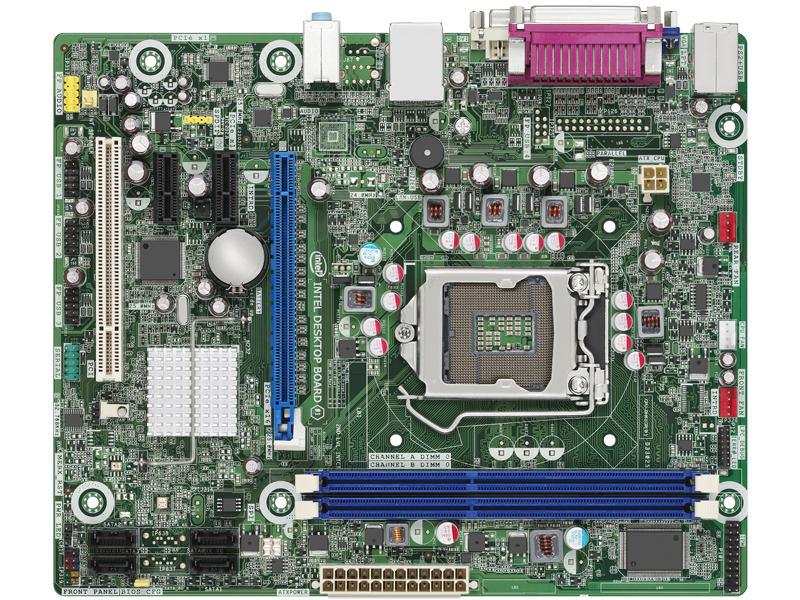

製品画像

スペック

Form factor Micro-ATX
Processor At product launch, this desktop board supports:
Intel® Core™ i7 processor series in an LGA1155 socket
Intel® Core™ i5 processor series in an LGA1155 socket
Intel® Core™ i3 processor series in an LGA1155 socket
View all compatible Intel® processor numbers
Memory Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1333 /1066 MHz DIMMs
Support for up to 16 GB of system memory
Tested system memory
Chipset Intel® H61 Express Chipset
Audio Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 6-channel (5.1) audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec
Graphics DVI-D and VGA connectors for processors with Intel® HD Graphics
LAN support Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral interfaces Up to ten USB 2.0 ports
Four Serial ATA 3.0 Gb/s ports
One serial header
One parallel port
Expansion capabilities One PCI Express* 2.0 x 16 bus add-in card connector port
Two PCI Express 2.0 x 1 connectors
One PCI Conventional bus connector
