スペック

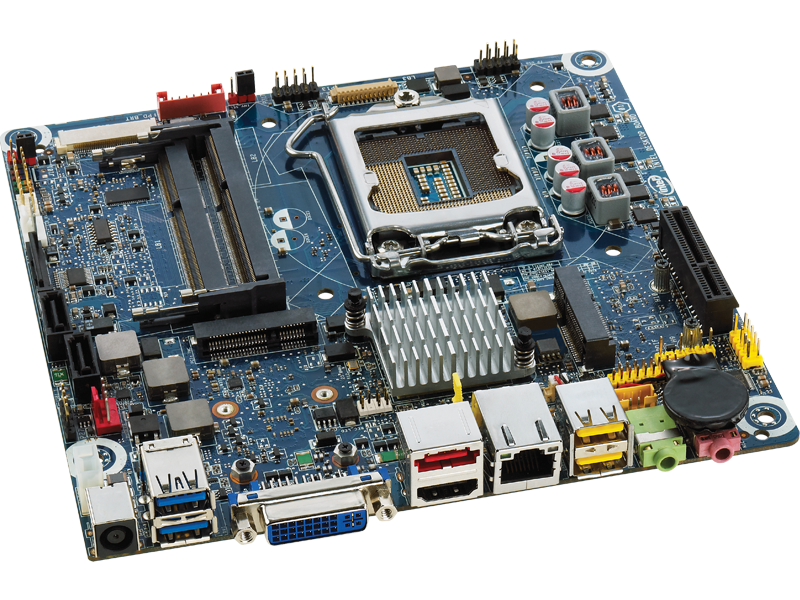

Form factor | Thin Mini-ITX |
---|---|
Processor |
At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket with up to 65W TDP Intel® Core™ i5 processor series in an LGA1155 socket with up to 65W TDP Intel® Core™ i3 processor series in an LGA1155 socket with up to 65W TDP View all compatible Intel® processor numbers |
Memory |
Two SO-DIMMs Support for DDR3 1333 /1066 MHz DIMMs Support for up to 16 GB of system memory |
Chipset | Intel® H61 Express Chipset |
Audio |
Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec Internal S/PDIF header and front panel audio header |

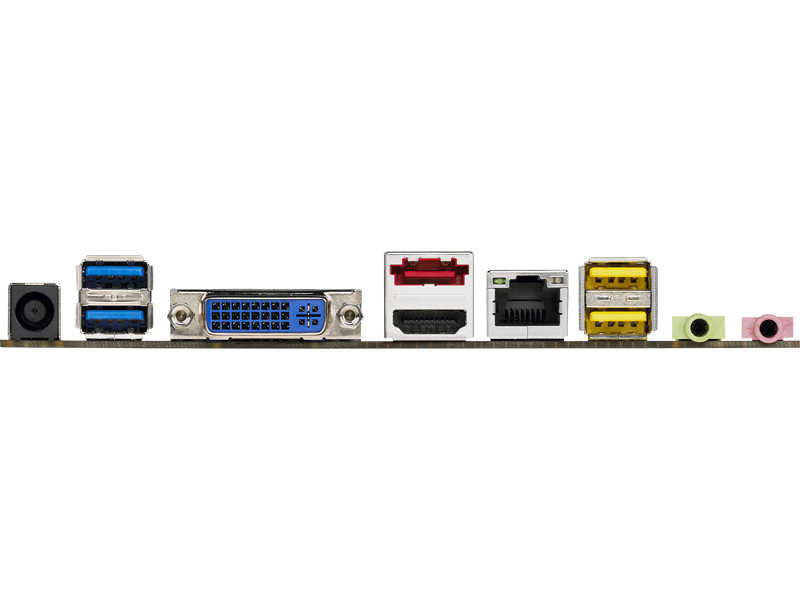

Graphics | DVI-D and VGA connectors for processors with Intel® HD Graphics |
LAN support | Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller |
Peripheral interfaces |
Two SATA 3.0 Gb/s and one External SATA (eSATA) 3.0 Gb/s ports Two USB 3.0 ports Ten USB 2.0 ports, two Hi-Current/Fast Charging back panel ports, and eight additional internal ports via five internal headers, 1via HMC, 2 via FMC |
Expansion capabilities |
One full-size Mini PCI Express* connector One half-size Mini PCI Express connector One PCI Express 2.0 x 4 connector |
