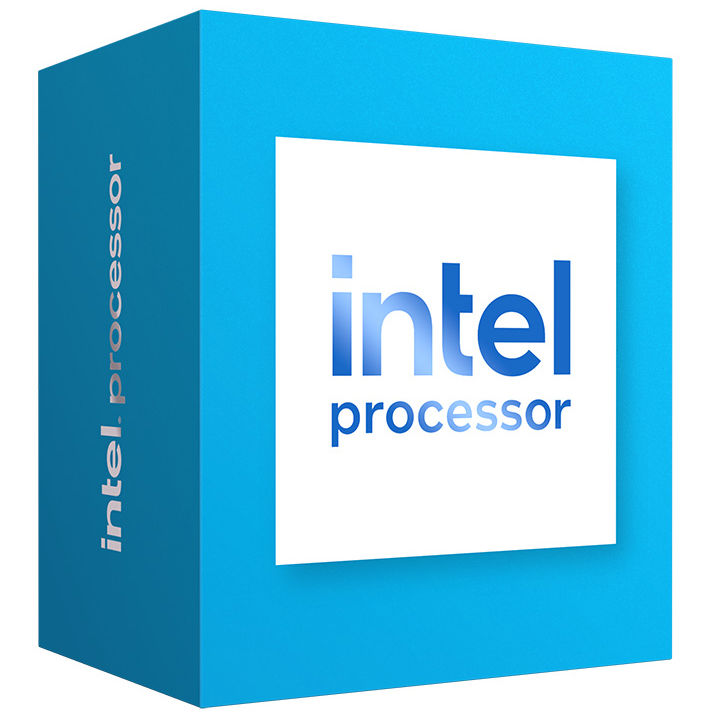

インテル® プロセッサー 300
6M キャッシュ、最大 3.90 GHz
製品仕様 SPEC
基本仕様
- Brand
- Intel® Processor
- Processor #
- 300
- In-Box Thermal Solution
- RM1
- Warranty
- Box: 3 Year Limited
Tray: 3 Year Limited - Socket
- LGA1700
- Intel® Smart Cache (L3) Size
- 6 MB
- Total L2 Cache
- 2.5 MB
- Processor Cores (P-cores + E-cores)1
- 2 (2P+0E)
- Processor Threads2
- 4
- Intel® Thermal Velocity Boost Frequency (GHz)2
- N/A
- Intel® Turbo Boost Max Technology 3.0 Frequency (GHz)2
- N/A
- P-core Max Turbo Frequency (GHz)3
- Up to 3.9 (Base Frequency)
- E-core Max Turbo Frequency (GHz)3
- N/A
- CPU PCIe Lanes
- 20
- Unlocked4
- No
- Processor Graphics
- Intel® UHD Graphics 710
- Memory Channels
- 2
- Maximum Memory Capacity5
- 192GB
- Processor Base Power (W)
- 46
- Maximum Turbo Power (W)
- N/A
- Reliability, Availability, & Serviceability6
- N/A
- Intel® SIPP7
- N/A
- ISM6
- Yes
- Intel® vPro®6,8
- N/A
- Maximum Memory Speed (MT/s)5
- DDR5 4800
DDR4 3200 - Chipset Compatability
- Intel® 700 Series Chipset
Intel® 600 Series Chipset
パッケージサイズ
- 幅(W)
- 7.9cm
- 奥行(D)
- 12.1cm
- 高さ(H)
- 10.5cm
法令関連
- 電気用品安全(PSE)
- 対象外
- 電波法(TELEC認証)
- 対象外
- RoHS対応
- RoHS対応
