System memory: DDR3 RDIMM
Total memory slots: 6 (Dual controllers; 2 x main memory DIMM and 1 x write cache DIMM for NVRAM for each controller.)
32GB/64GB Main Memory + 16GB write cache PER CONTROLLER.
Flash Memory
2 GB DOM
USB
2 x USB 3.0/2.0 port (For Developement and debug only)

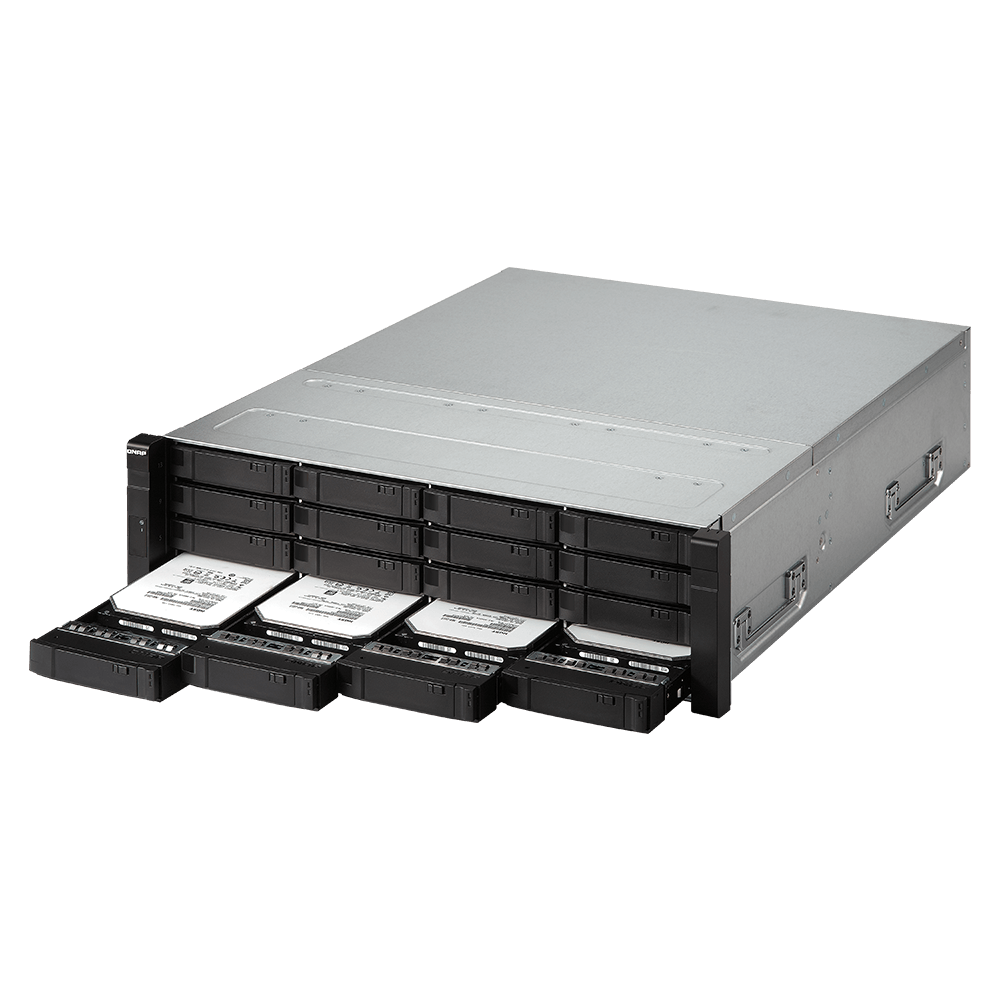

Hard Drive
16 x 3.5"/2.5" SAS 12Gbps/6Gbps hard drive, or 2.5" SAS SSD; lockable tray
Maximized Raw Capacity
160 TB (Configuration: 16 x 10 TB hard drives)
Hard Drive Interface
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
10/100/1000 Mbps LAN Port
1 for each controller (for remote management)
10Gbps LAN Port
4 x SFP+ (インテル® イーサネット・コントローラー XL710-AM1) and 2 x RJ45 (LAN-10G2T-X550) for each controller
PCIe Slot
PCIe Slot x8 (Gen3 x8): Pre-installed with a LAN-10G2T-X550 NIC (2 x 10GbE RJ45 ports), replacable with a 40GbE NIC
PCIe Slot x4 (Gen2 x4): Pre-installed with a dual-port Mini-SAS adapter
Cache for Copy To Flash (C2F)
M.2 2280 SSD (64GB) dedicated to NVRAM, SATA signaling
Form Factor
3U rackmount
Dimension
618(D) x 446.2(W) x 132(H) mm (excluding front grips)
Weight
Net weight (NAS only): 26.75 kg / 58.97 lb
Gross weight (with packing and accessories): 36.94 kg / 81.44 lb
Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Electro-Magnetic Compatibility (EMC)
• FCC Class A (USA only)
• CE Mark ( EN55022 Class A, EN55024)
SAFETY Standard
• EN60950
• BSMI
• VCCI
• CB
• LVD

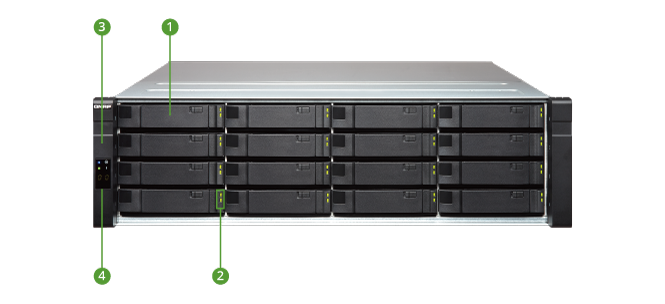

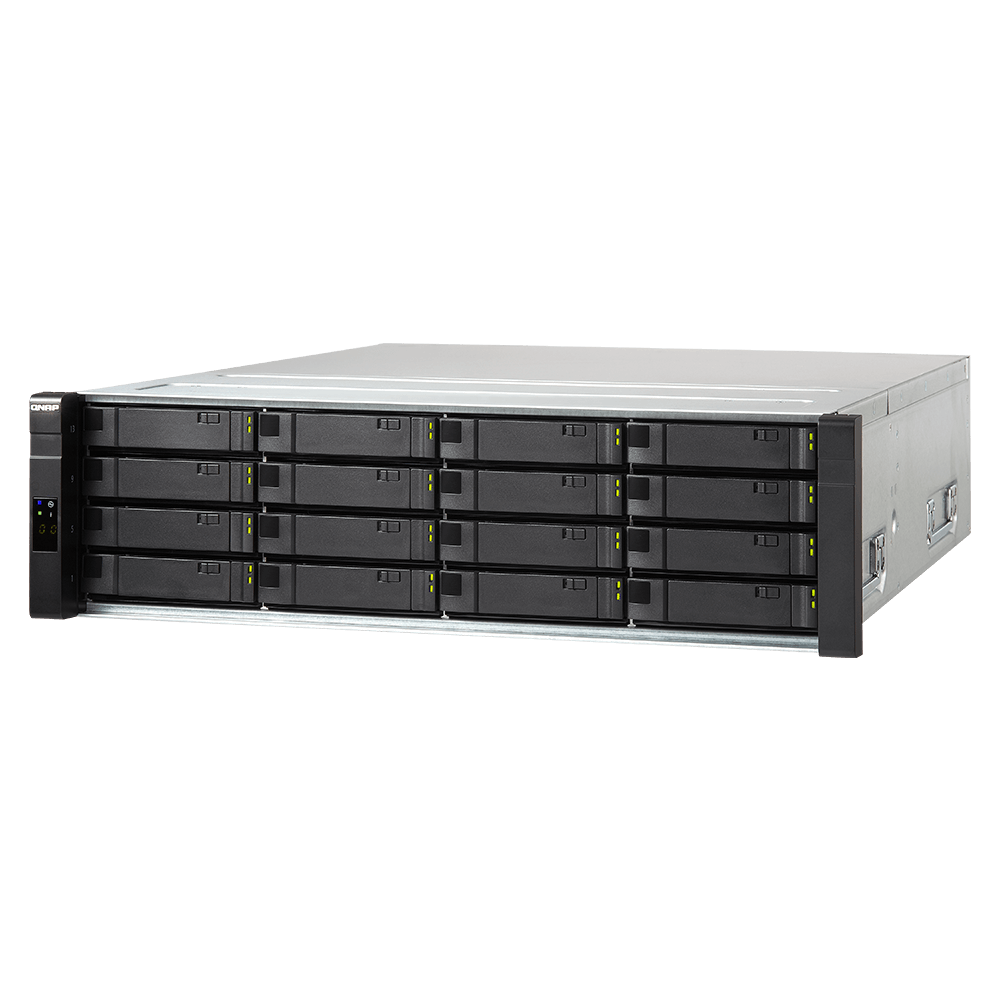

フロント
Hard Drive Tray
Hard Drive LED Indicators
Power On Button
LED Indicators
System Power LED (Blue): on/off
System Status (Green/ Red): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged

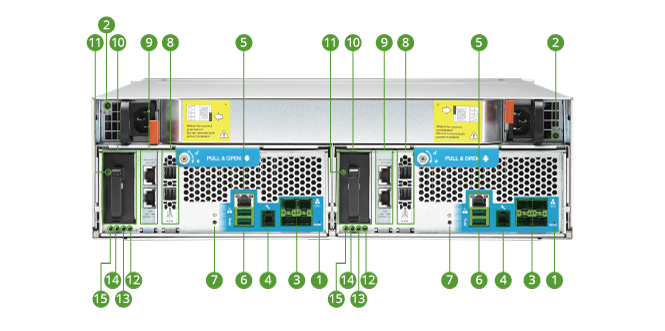

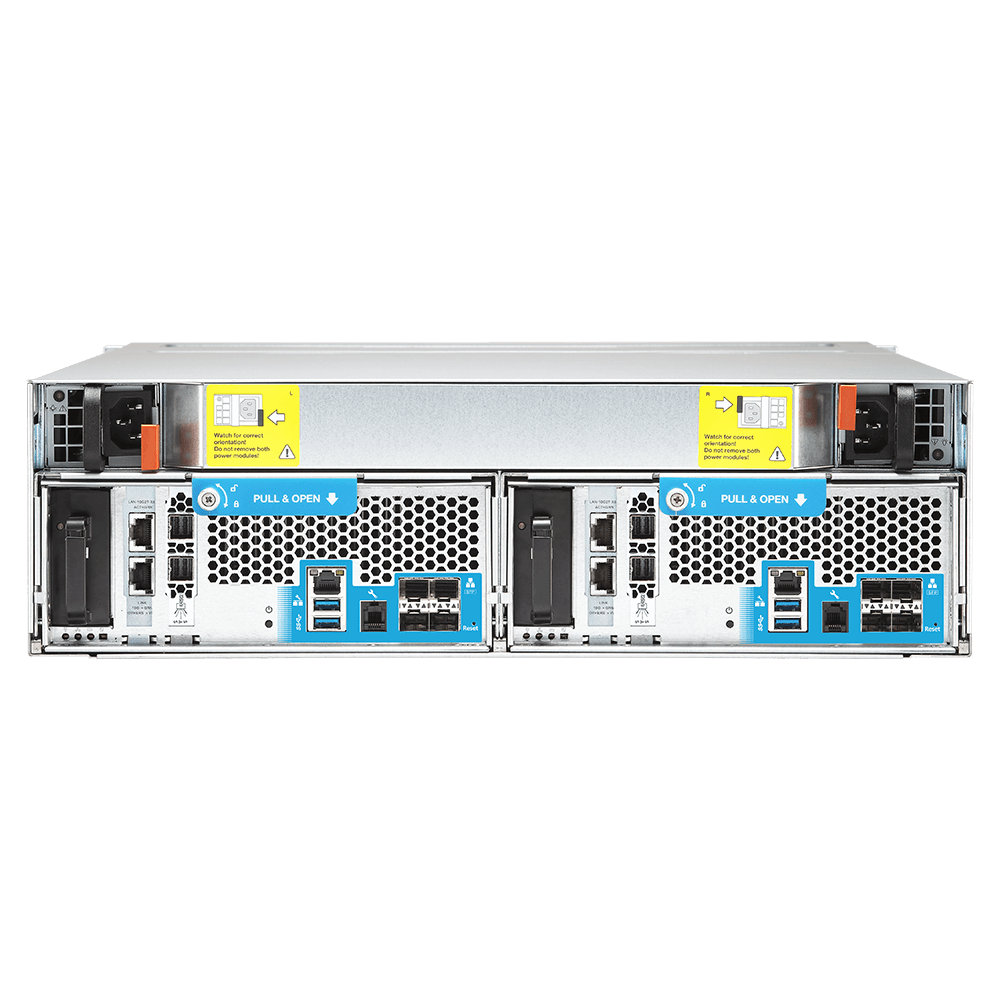

リア
Password & Network Settings Reset Button
Power Supply LED (Green/ Orange)
4 x 10GbE (SFP+) Port
RJ11 to RS-232 serial
1GbE Management Port
2 x USB 3.0/2.0
Power Button
PCIe Gen2 x4 Slot, with dual path Mini-SAS (SFF-8644) expansion card on board
PCIe Gen3 x8 Slot, pre-installed with a LAN-10G2T-X550 NIC for 2 x 10GbE (RJ45) Port
BBU
BBU Status Light (Green/ Red/ Orange)
Controller Status Light (Green/ Orange)
Fan Status Light (Green/ Orange)
Battery Status Light (Green/ Orange)
High Availability LED (Green/ Orange)
Remark:

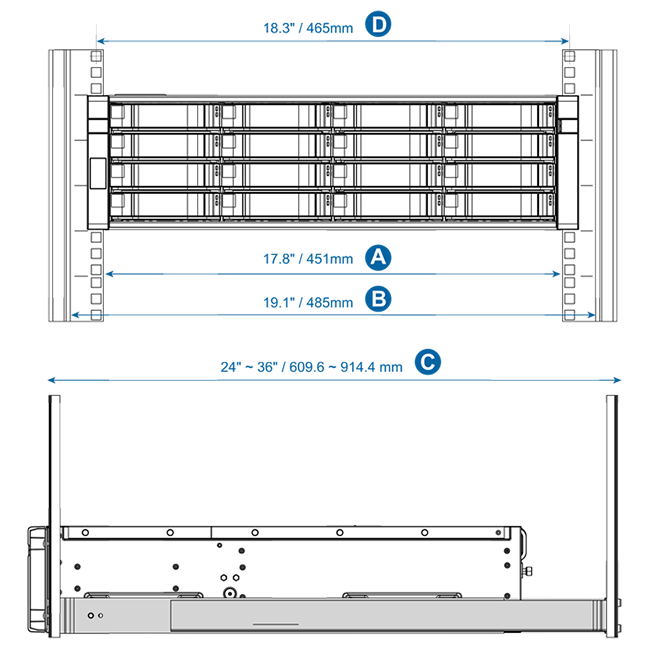

The Enterprise ZFS NAS rack mount models comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria:
1. Rack size
Mounting post width: ≥ 451mm
Panel width: ≥ 485mm
Mounting post depth: 609.6mm~914.4mm
The distance between two rack posts is 465mm (center-to-center measurement of the rack's square holes)

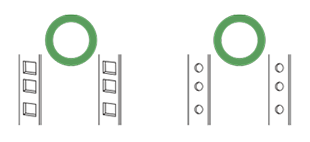

2. The optional rack kits for the Enterprise ZFS NAS rack mount models are compatible with both square-hole and round-hole server racks.
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
