Intel® Xeon® Phi™ x200 processor/KNL対応、2U 4-Node シャーシ(オプション:Intel® Omni-Pathfabric)
1. Single socket P (LGA 3647) supports
Intel® Xeon® Phi™ x200 processor,
optional integrated Intel® Omni-Path
fabric, CPU TDP support Up to 260W
2. Up to 384GB ECC LRDIMM, 192GB ECC
RDIMM, DDR4-2400MHz in 6 DIMM slots

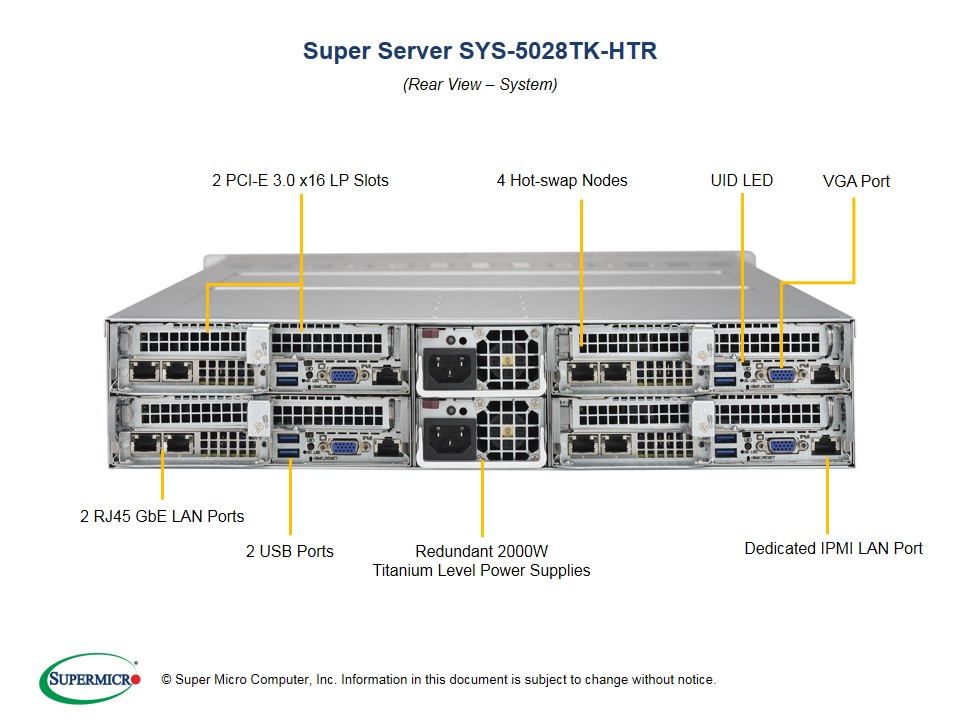

3. 2 PCI-E 3.0 x16 (Low-profile) slots
4. Intel® i350 Dual port GbE LAN
5. 1 Dedicated IPMI LAN port

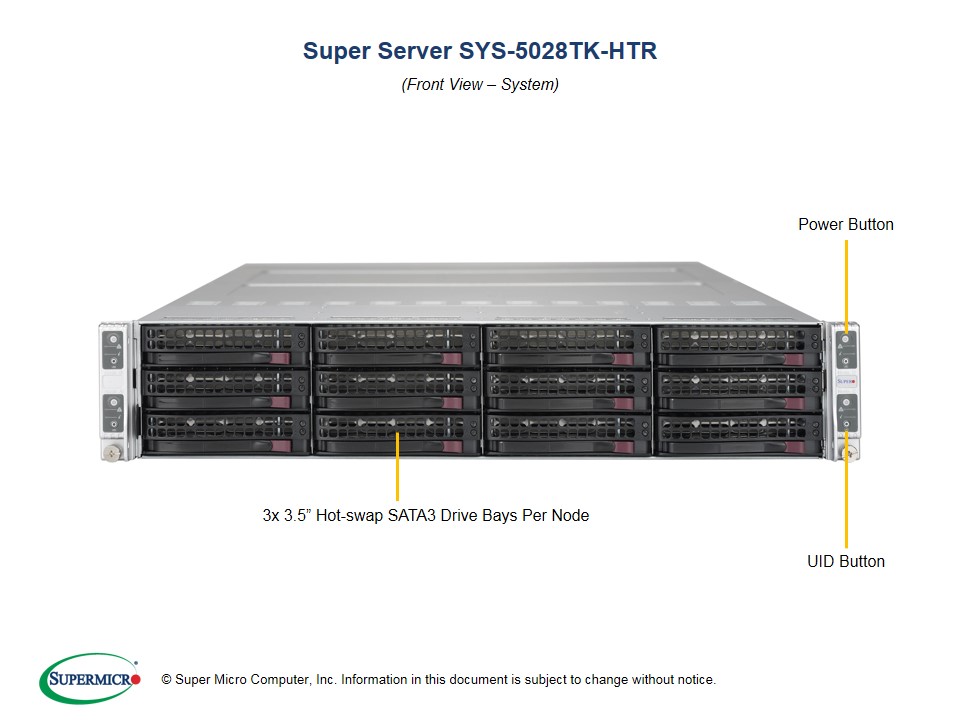

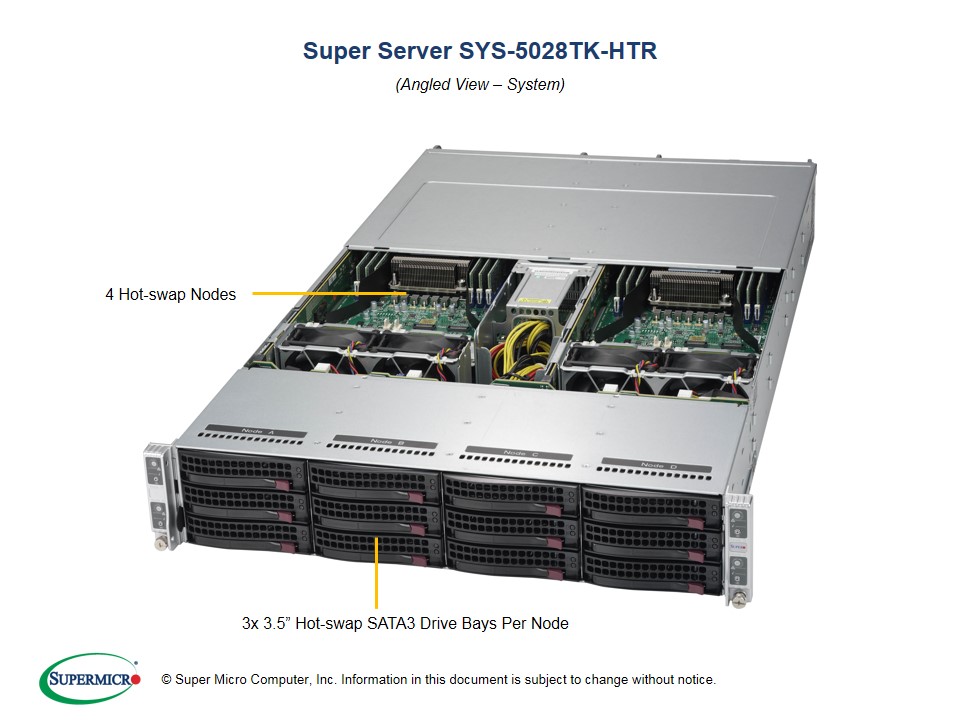

6. 3 Hot-swap 3.5" SATA drive bays
7. 1 VGA, 2 SuperDOM, 2 USB 3.0 ports (rear)

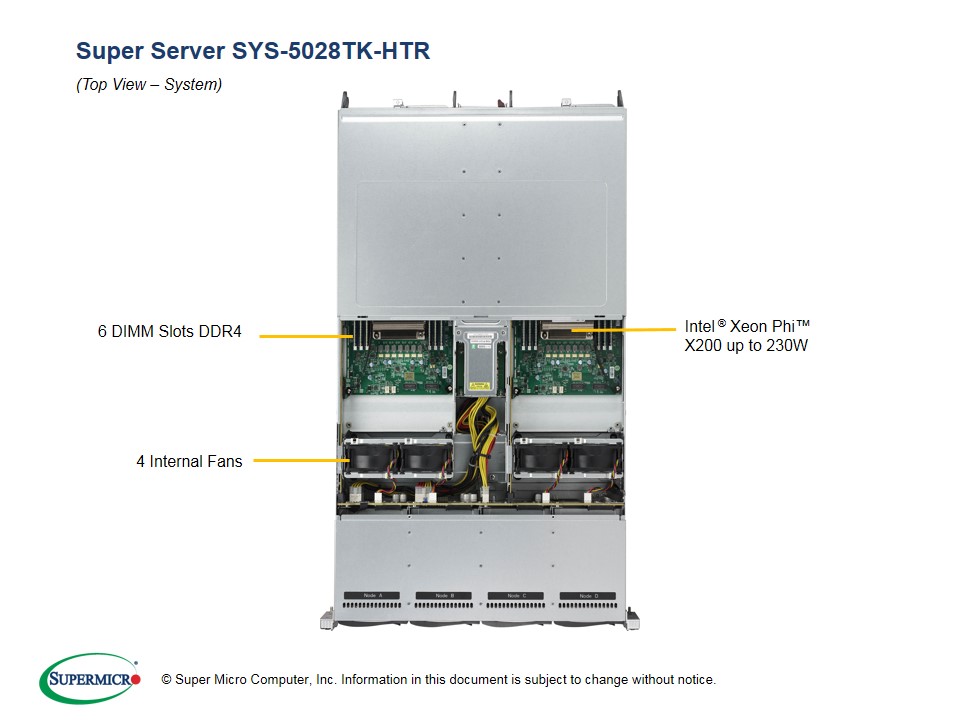

8. 4x 8cm heavy duty PWM fans with air
shroud and optimal fan speed control
9. 2000W Redundant Power Supplies
Titanium Level (96%)
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
プロセッサーファミリ | Intel® Xeon® Phi™ x200 processor |
---|---|
プロセッサー搭載数 | 4(1CPU/ノード) |
チップセット | Intel® C612 chipset |
フォームファクタ | 2U |
メモリ | Up to 384GB ECC LRDIMM, 192GB ECC RDIMM, DDR4-2400MHz in 6 DIMM slots(1ノード毎) |
ドライブベイ | 3 Hot-swap 3.5" SATA(1ノード毎) |
ネットワーク | 2 x RJ45 1GBase-Tポート(1ノード毎) |
拡張スロット | 2 PCI-E 3.0 x16 /Low-profile slots(1ノード毎) |
外部ポート | 1 VGA, 2 USB 3.0 ports (1ノード毎) |
外形寸法(幅x高さx奥行) | 438x88x762mm |
電源ユニット | 2000W x 2,Titanium Level , 4 ノード共用 |
