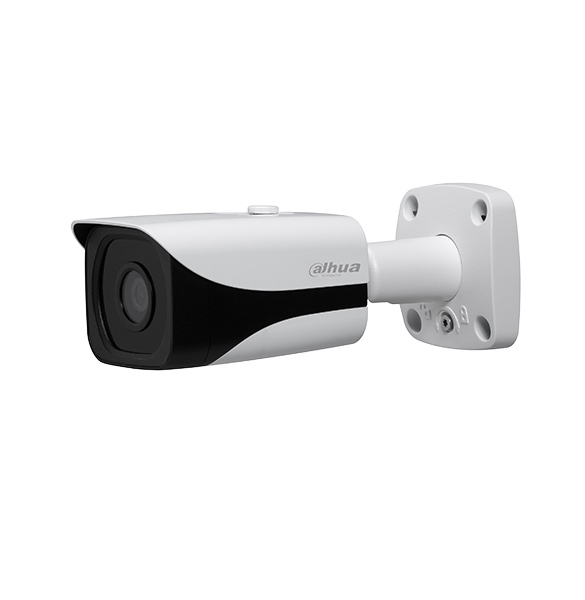

IPC-HFW4831E-SE
800万画素、ワイドダイナミックレンジ、最大40mのIR搭載のバレット型ネットワークカメラ。
IPC-HFW4831E-SEの主な特長
- 1/2.5インチの8メガピクセルプログレッシブスキャンSTARVIS™ CMOSセンサーを使用しており、高解像度の画像キャプチャを実現しています。
- カメラはH.265およびH.264トリプルストリームエンコーディングをサポートしており、効率的なビデオデータの圧縮と伝送が可能です。
- 15fps@4K(3840×2160)、25/30fps@3M(2304×1296)
- スマート検知をサポート。
- WDR(120dBのワイドダイナミックレンジ)、Day/Night(ICRで昼夜問わずクリアな画像を提供)、3Dノイズリダクション、AWB(オートホワイトバランス)、AGC(オートゲインコントロール)、BLC(バックライト補正)
- 複数のネットワークモニタリングオプションをサポート:Web viewer(ウェブブラウザからのアクセス)、CMS(DSS/PSS) & DMSS(リモート監視用モバイルアプリ)
- 2.8mm固定レンズが付属しており、広角ビューに適しています。(オプションの4mmレンズ有り)
- 最大40mのIR LED長を備えており、完全な暗闇でもクリアな視認性を提供します。
- Micro SDメモリーサポート、IP67(防塵防水)、PoE(イーサネットによる電力供給可能)
製品仕様 SPEC
Camera
Image Sensor
|
1/2.5” 8Megapixel progressive scan CMOS |
Effective Pixels
|
3840(H)x2160(V)
|
RAM/ROM
|
512MB/32MB
|
Scanning System
|
Progressive
|
Electronic Shutter Speed
|
Auto/Manual, 1/3(4)~1/100000s
|
Minimum Illumination
|
0.06Lux/F1.6( Color,1/3s,30IRE)
0.3Lux/F1.6( Color,1/30s,30IRE) 0Lux/F1.6(IR on) |
S/N Ratio
|
More than 50dB
|
IR Distance
|
Distance up to 40m (131ft)
|
IR On/Off Control
|
Auto/ Manual
|
IR LEDs
|
2
|
Lens
Lens Type
|
Fixed
|
Mount Type
|
Board-in
|
Focal Length
|
2.8mm (4.0mm optional)
|
Max. Aperture
|
F1.6 (F1.6)
|
Angle of View
|
H:112° (88°), V:69° (48°)
|
Optical Zoom
|
|
Focus Control
|
Fixed
|
Close Focus Distance
|
0.9m(1.7m)
|
DORI Distance
|
2.8 mm Detect:69m(226ft) Observe:28m(92ft) Recognize:14m(46ft) Identify:7m(23ft) 4.0 mm Detect:89m(292ft) Observe:36m(118ft) Recognize:18m(59ft) Identify:9m(30ft) |
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range
|
Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
|
Intelligence
IVS
|
Tripwire, Intrusion, Object Abandoned/Missing
|
Advanced Intelligent Functions |
Face Detection |
Video
Compression |
H.265+/H.265/H.264+/H.264 |
Streaming Capability |
3 Streams |
Resolution |
4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/ 3M(2048x1536)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240) |
Frame Rate |
Main Stream: 4K(1~15fps)/3M(1~25/30fps) |
Sub Stream: D1(1~25/30fps) |
|
Third Stream: 1080P(1~25/30fps) |
|
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps |
Day/Night |
Auto(ICR) / Color / B/W |
BLC Mode |
BLC / HLC / WDR(120dB) |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detetion |
Off / On (4 Zone, Rectangle) |
Region of Interest |
Off / On (4 Zone) |
Electronic Image Stabilization (EIS) |
|
Smart IR |
Support |
Defog |
|
Digital Zoom |
16x |
Flip |
0°/90°/180°/270° |
Mirror |
Off / On |
Privacy Masking |
Off / On (4 Area, Rectangle) |
Audio
Compression |
|
Network
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability |
ONVIF, PSIA, CGI |
Streaming Method |
Unicast / Multicast |
Max. User Access |
10 Users /20 Users |
Edge Storage |
NAS Local PC for instant recording Mirco SD card 128GB |
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software |
Smart PSS, DSS, Easy4ip |
Smart Phone |
IOS, Android |
Certifications
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
Interface
Video Interface |
|
Audio Interface |
|
RS485 |
|
Alarm |
|
Electrical
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
Power Consumption |
<6.5W |
Environmental
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection |
IP67 |
Vandal Resistance |
|
Construction
Casing |
Metal |
Dimensions |
180mm×70mm×70mm (7.09”×2.76”×2.76”) |
Net Weight |
0.41kg (0.91lb) |
Gross Weight |
0.53 kg (1.17lb) |
