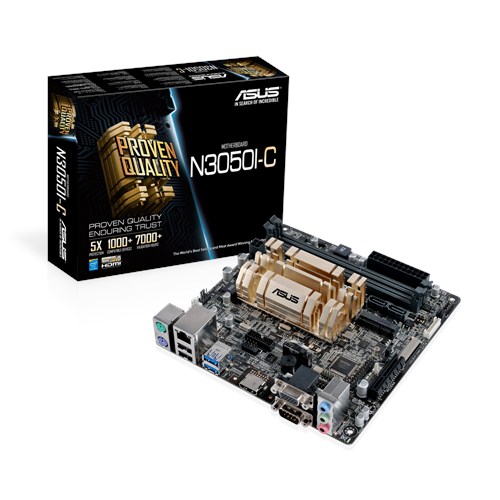

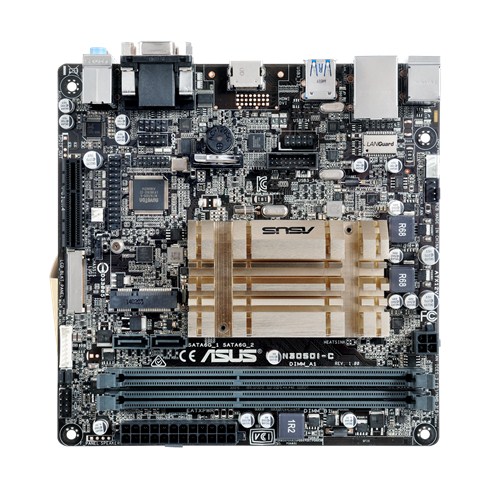

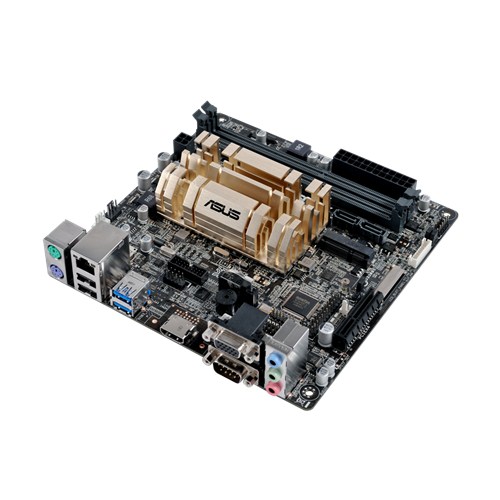

Celeron N3050 CPUをオンボード搭載するファンレス仕様のMini-ITXマザーボード
・JAN/UPC:0889349067277
・TEKWIND型番:ASU-N3050I-C
【主な特長】
・Intel Celeron N3050 CPUをオンボード搭載
・DDR3メモリ×2(最大8GB)対応
・PCIe 2.0 x4×1
・HDMI×1、D-Sub 15ピン×1、LVDS×1
・SATA 6Gb/s×2
・USB 3.0×4、USB 2.0×4
・Fan Xpert搭載
・Mini-ITXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
- CPU
Intel® Celeron® Dual-Core N3050 SoC onboard Processors
- Memory
2 x U-DIMM, Max. 8GB, DDR3 1600/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture - Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB - Expansion Slots
1 x PCIe 2.0 x4 (x1 mode)
- Storage
Built-in Controller :
2 x SATA 6Gb/s port(s), dark brown,
Supports Intel® Smart Connect Technology - LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *1
- USB Ports
Built-in Controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
GL852G USB Hub :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) - Special Features
ASUS 5X Protection :
- ASUS LANGuard - Advanced LAN protection
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS Exclusive Features :
- AI Suite 3
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice - Operating System
SupportWindows® 8.1 , 64bit

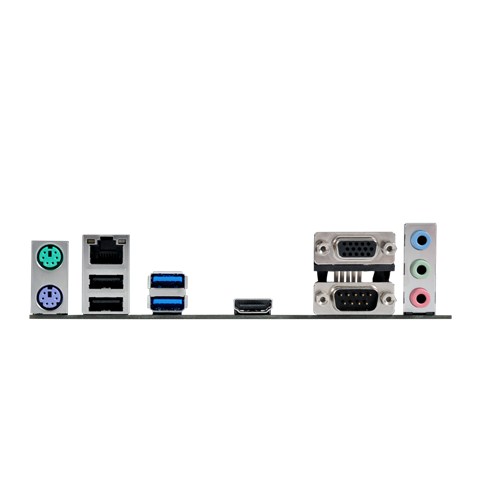

Windows® 7 , 64bit - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x COM port(s)
3 x Audio jack(s) - Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x LVDS connector(s)

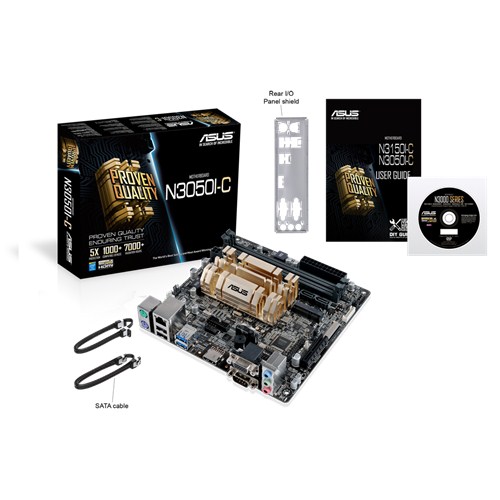

1 x Buzzer - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version) - Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm ) - Note
*1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
**2: Please follow SOP in manual when installing Windows®7 64-bit and USB3.0 drivers.
