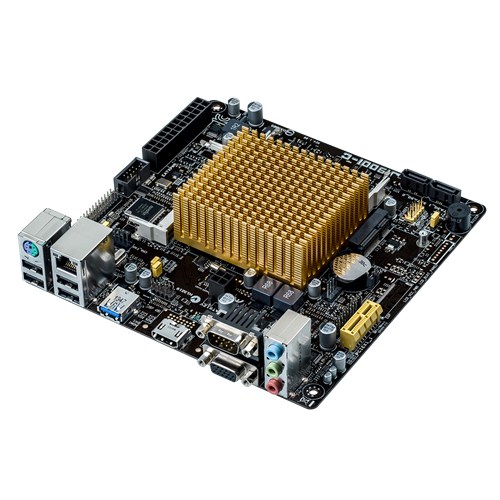

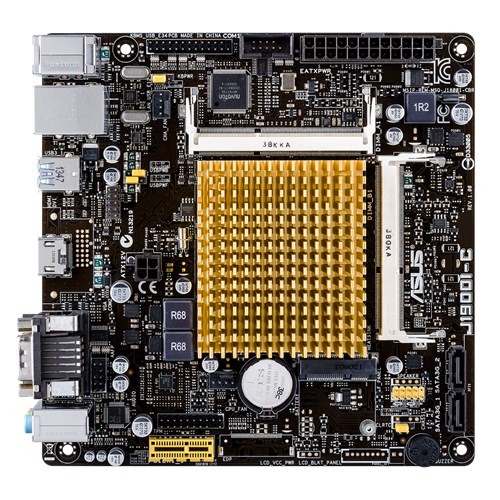

コードネームBay Trail-Dの低電力Celeron J1900クアッドコアCPUをオンボード搭載するMini-ITXマザーボード
・JAN/UPC:0886227734702
・TEKWIND型番:ASU-J1900I-C
【主な特長】
・Intel Celeron J1900クアッドコアCPUオンボード搭載
・DDR3L SO・DIMMメモリ×2(最大8GB)
・PCIe 2.0 x1×1、PCIe 2.0 x1 Mini Card×1
・HDMI×1、D・Sub 15ピン×1
・SATA 3Gb/s×2
・1000BASE・T×1
・USB 3.0×1、USB 2.0×6
・Fan Xpert
・Mini・ITXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
CPU | Intel Celeron Quad Core Processor J1900 |
---|---|
LAN | Realtek 8111G PCIe Gigabit LAN controller |
USB | 1x USB3.0, 6x USB2.0 |
オーディオ機能 | Realtek ALC887 8-channel High Definition Audio CODEC |
メモリ | 2 x SO-DIMM DDR3L 1333 MHz, Max 8GB, non-ECC, un-buffered memory |
拡張スロット | 1xPCI Expressx1,1xMini PCIe slot |
背面端子類 | 1xPS/2 combo porte,1xHDMI port,1xD-Sub,1x COM port,1xUSB 3.0,4xUSB 2.0,1xGigabit LAN,Audio I/O ports |
- CPU
Intel® Celeron® quad-core J1900 Processors
- Memory
2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 512 MB
Supports DirectX 11 - Expansion Slots
1 x PCIe 2.0 x1
1 x mini-PCIe *2 - Storage
Built-in Controller :
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Smart Connect Technology - LAN
Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking - USB Ports
Built-in Controller :
1 x USB 3.0 port(s) (1 at back panel, blue)
Built-in Controller :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) - Special Features
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors - Operating
System SupportWindows® 8.1
Windows® 8
Windows® 7

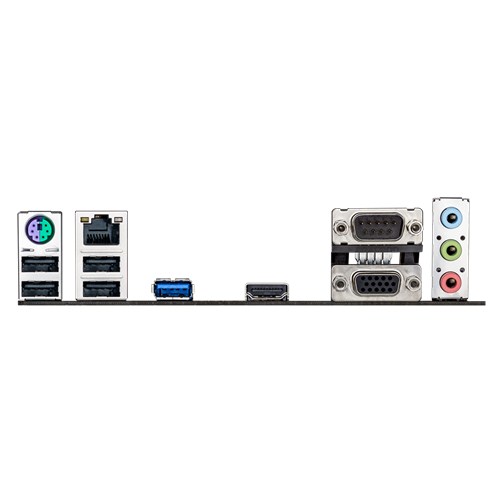

Please update your BIOS and drivers to the latest version to support Windows 7 - Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.0
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s) - Internal I/O Ports
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Buzzer - Accessories

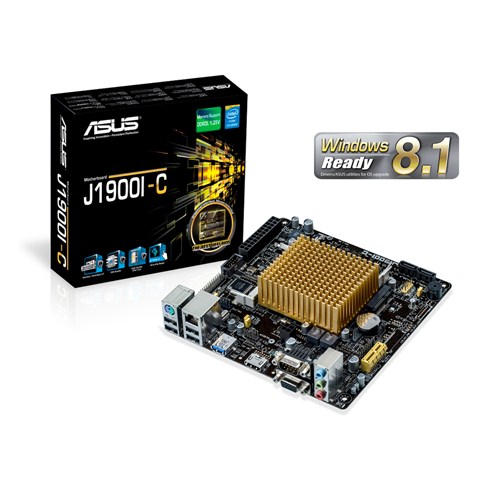

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version) - Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm ) - Note
*1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2:This socket does not support USB Bluetooth signals.
(The PCI Express x1 slots conform to PCI Express 2.0 standard)
*3:Please update your BIOS and drivers to the latest version to support Windows 7.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
